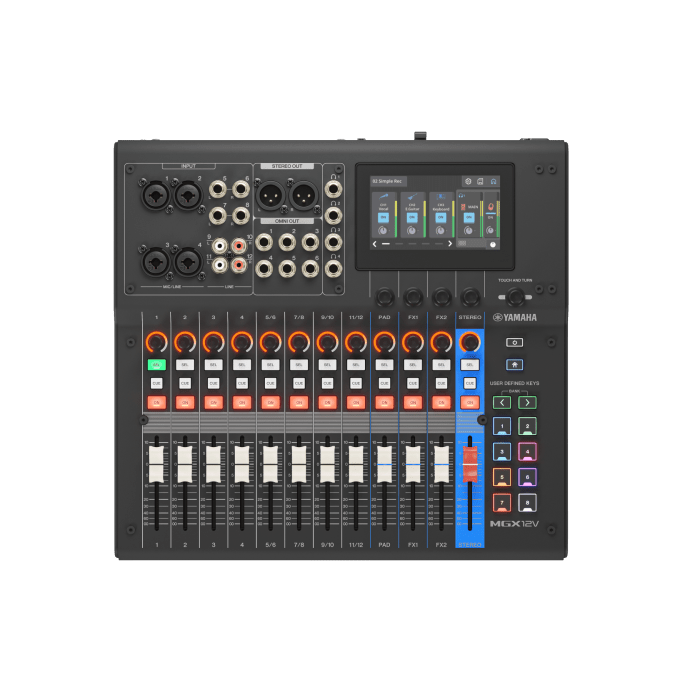

Yamaha MGX12V B

The Yamaha MGX12V B (Black) builds on the well-known MG series and takes this concept to a new digital generation, combining studio-quality audio, flexible routing, intuitive controls and extensive video integration. This digital mixer is designed for modern applications that merge audio and video, such as livestreaming, podcasting, hybrid events and content production.

Despite its extensive functionality, operation is uncluttered and direct. The MGX12V features 12 non-motorized faders, a bright 4.3-inch touchscreen and five physical control buttons. The mixer offers ample local connection options, including four high-quality MGX microphone preamps on Mic/Line combo inputs and a total of 12 flexibly deployable mixing channels.

In addition to audio functionality, the MGX12V distinguishes itself with an integrated USB-HDMI audio/video interface. This lets you process audio and video in one compact setup, including capture functionality and real-time HDMI passthrough. Combined with the 18-in / 18-out USB audio interface, Bluetooth audio input and internal 16-track recorder on microSD card, the MGX12V forms a complete production center for both live and studio environments.

[[READMORE]]

Refine your mix with 'True Sound' accuracy
The MGX12V is equipped with four MGX microphone preamps and high-quality AD/DA converters that are fully in line with Yamaha's 'True Sound' philosophy. This results in a gain range of up to 86 dB, very low distortion and a dynamic range of 125 dB. The internal DSP delivers high-quality digital effects and monitoring without latency, ideal for both live use and recording. The comprehensive mixing architecture includes mono and stereo channels, a dedicated Sound Pad, two FX channels and extensive Mix, FX, Cue and Stereo buses. Four headphone outputs ensure reliable monitoring in any situation.

Creative workflows with audio AND video
The Yamaha MGX12V is more than a digital mixer; it is a multi-functional creative platform. Flexible routing and dual Main and Sub-USB ports give you an 18-in / 18-out USB audio interface, complemented by 2-track recording and playback through the Sub-port. Bluetooth makes wireless audio playback easy during performances, streams or studio sessions. Eight freely configurable pads allow direct triggering of sound effects or proprietary functions. With internal recording of up to 16 tracks and 2-channel playback from microSD, capture professional audio anywhere, without an external recorder.

Smart controls that work with you
The combination of physical controls and the clear 4.3-inch touchscreen makes the MGX12V fast and pleasant to use. The 12 faders offer precise level control supported by dedicated Send buttons, four freely assignable rotary knobs and a Touch & Turn controller. Smart auxiliary functions such as Smart Gain and Clip Safe help set stable levels, while the Total FX section -- which includes a Ducker and a multiband compressor -- ensures a controlled and professional end result. With quick Scene Recall and an optional Simple mode, you instantly switch between setups.

Audiovisual power for modern productions
The MGX12V is equipped with HDMI In and HDMI Thru and a powerful USB-HDMI interface with capture functionality. This allows you to process and transmit audio and video simultaneously within one compact setup. The mixer supports high resolutions of up to 4K at 60 fps, 1440p at 120 fps and 1080p at 240 fps, allowing the seamless integration of cameras, game consoles and other video sources. Close collaboration with Elgato and OBS Studio makes the MGX12V particularly well suited for livestreaming, podcasts, hybrid concerts and complete broadcast workflows, where audio and video work seamlessly together.

Yamaha MGX12V B features:

• 12-channel digital mixer with integrated audio and video functionality
• 12 non-motorized faders, 4.3-inch touchscreen and 5 control buttons
• 4 MGX microphone preamps on Mic/Line combo inputs
• 4 headphone outputs for extended monitoring
• 12 mix inputs with mono and stereo channels, Sound Pad, 2 FX channels and extensive bus structure
• 18-in / 18-out USB audio interface plus 2-track recording and playback via Sub-port
• Bluetooth audio input for wireless integration
• 8 adjustable pads for sound FX and functions
• internal 16-track recorder on microSD card with 2-channel playback
• USB-HDMI audio/video interface with capture and real-time HDMI passthrough
• DSP with digital effects and latency-free monitoring
• Auto Gain, Clip Safe, Simple/Standard mode and Scene Recall
• comes with Steinberg production software and integration with Elgato and OBS Studio

Yamaha MGX12V B specifications:

• digital mixer, 12 channels
• color: black
• 4x inputs with microphone preamplifier
• 4x line inputs, XLR/6.35 mm combo, 4 x 6.35 mm
• 2x dual RCA stereo inputs
• 2x XLR outputs
• 6x direct outputs 6.35 mm TRS jack
• 4x 6.35 mm TRS jack headphone outputs
• USB: 2 x USB-C
• data I/O: 2 x HDMI
• 12 faders
• 4,3 inch touch screen
• storage: microSD card slot
• software: Cubase AI, WaveLab Cast LE, Basic FX Suite and Steinberg Plus software bundle
• power supply: 16 V DC mains adapter
• manufacturer item number: MGX12V B
