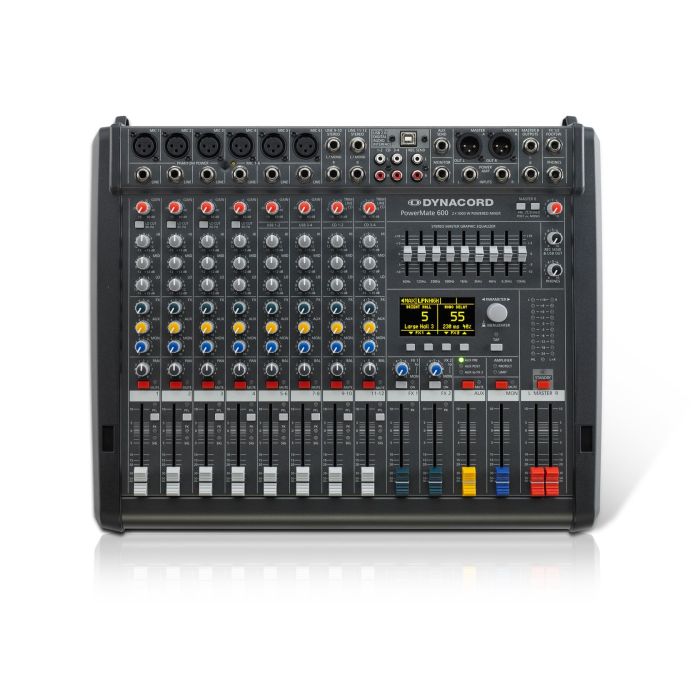

Dynacord Powermate 600-3

The Dynacord PowerMate 600-3 is a mixing console with built-in amplifier. This PowerMate 600-3 is already the third generation of this mixer with built-in amplifier. The mixer actually has six types of audio devices in one compact frame: a mixer, two effects units, graphic equalizer, USB audio interface and power amplifier.

The mixer has 6 low-noise microphone preamps, 3 auxiliary buses (one of which is pre/post fader switchable). These Aux buses allow high flexibility for monitoring. The two effect processors offer 100 presets, including the well-known PowerMate reverb and delay. Each preset is edited and stored in 20 user memories.

The built-in USB audio interface has four playback and four recording channels simultaneously with a PC or Mac at studio standard quality: 24-bit / 96 kHz. An additional MIDI interface allows integration of instruments, such as keyboards. The mixer comes with a license for Steinberg's Cubase software. The 11-band stereo graphic equalizer can be flexibly routed to master or monitor channels.

The amplifier is extremely powerful with as much as 2x 1000 W / 4 Ohms (RMS). Thanks to the modern switching-mode power supply and a Class-D output stage, it is very efficient and lightweight. The slim enclosure protected by a robust plastic cover with integrated handle for easy transport.

Dynacord PowerMate 600-3 mixer features:

• Dynacord Powermate 600 MKIII powered mixer

• class D amplifier

• 2x 1000 W (4 Ohms), 2x 600 W (8 Ohms), 2x 1350 W (2.66 Ohms)
• connections:
  - 6 mic jacks (XLR)
  - 4 outputs (XLR, 6.3 mm jack, SpeakOn rear panel)
  - 6 FX/AUX/Mon (6.3 mm jack)
  - 4 RCA jacks
  - USB jack
  - MIDI in/out (5-pin, rear panel)
  - lamp jack (12V DC)
  - footswitch (6.3 mm jack)
  - headphones (6.3 mm jack)
  - power cable (rear panel)
• digital audio interface
  - 4 in/4 out
  - 24 bit AD/DA conversion
  - sampling rate: 44.1/48/88.2/96 kHz

• low-cut filter on all mono channels (80 Hz)

• graphic stereo equalizer

• +48V phantom power supply

• dual stereo effect processor, with 100 standard presets, 20 adjustable

• tap delay

• 128 x 64 OLED display


Dynacord PowerMate 1000-3 mixer specifications:

• frequency range: 15 Hz - 70 kHz
• THD: <0.005%

• noise: -97 dB

• S/N ratio: 105 dB
• effects: 2x stereo 24/48-bit, 100 factory and 20 user presets, Tap-Delay

• protections: audio limiters, high temperature, short circuit, power-on delay, back EMF, high voltage protection

• Dynacord part no.: DC-PM600-3-UNIV

• Dynacord order no.: F01U213899

• dimensions (WxDxH): 483 x 135.8 x 310.3 mm (7 HU) (without cover), 438.8 x 161.7 x 362.5 mm (with cover)
• weight: 9 kg (without cover), 9.5 kg (with cover)

Included: lid, manual and power cable
