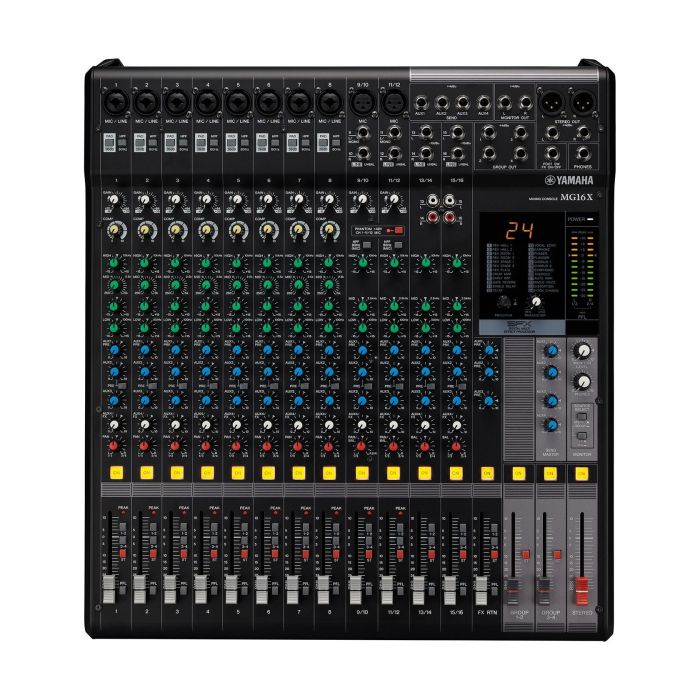

Yamaha MG16X

The Yamaha MG16X is a professional, 16-channel mixer with compressors, microphone preamps and effects. Due to its metal casing, the mixer is very robust and rock solid!

Audio professionals looking for a high-quality analog mixer with integrated effects will be impressed with this Yamaha MG16X, a compact 16-input mixer with built-in effects for performances, lectures, recordings and similar applications. The mixer features eight mono mic/line combo input channels, two stereo line input channels that can also be used as mono mic or line inputs (XLR and stereo 1/4-inch inputs), and two stereo line inputs with 1/4-inch and RCA jacks. Channels 1 through 12 are each equipped with D-Pre mic preamps, 3-band EQ, pan control, and a high-pass filter. The D-Pre mic preamps have a reverse Darlington circuit and switchable 48V phantom power for use with dynamic and condenser microphones. Channels 1-8 are equipped with a mic pad, which provides 26 dB of attenuation for use with loud sound sources such as guitar amps and drums. Channels 1-8 are also equipped with Yamaha's 1-button compression for easy tuning and professional results.

The MG16X mixer has XLR and TRS stereo outputs for connection to your PA system or monitor speakers. It also has a 1/4" headphone output with level control for personal monitoring, as well as additional TRS 1/4" stereo monitor outputs for sending to speakers with internal amplification, amplifiers or devices such as digital recorders. Each channel of the MG16X has its own FX bus end level, and there are 24 effect presets to choose from. The overall level of the FX bus is controlled by the dedicated FX return level control. With reverbs, delays, phaser, flanger, chorus, tremolo, auto-wah, distortion and more, you can use these effects to better blend vocals and instruments into your mix.

• 16-channel mixer

• 10 Mic / 16 Line inputs (8 mono + 4 stereo)

• 4 group buses + 1 stereo bus

• 4 auxiliary channels (incl. FX)

• "D-PRE" mic preamps with reverse Darlington circuitry

• 1-Knob compressors

• high quality effects: SPX with 24 programs

• PAD switch on mono inputs

• +48V phantom power

• XLR balanced outputs

• metal chassis

• including 19 inch rack

• dimensions (B×H×D): 44.4 x 13 x 50 cm

• weight: 6.8 kg.
