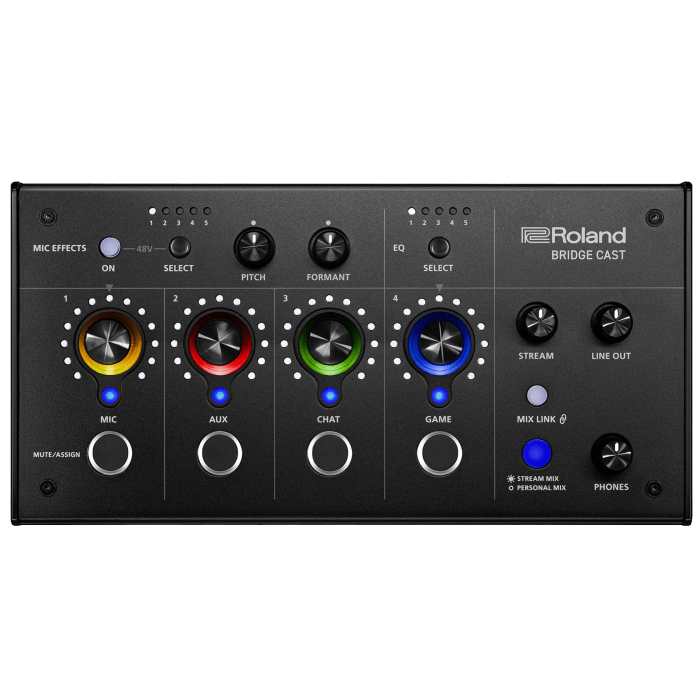

Roland Bridge Cast

The Roland Bridge Cast is a device that focuses on "Pro Sound for Pro Gamers." The Bridge Cast is a combination of an audio interface, mixer and podcasting equipment and gives a significant improvement to your sound. It also offers the ability to create professional live streams.

It is a desktop hub with convenient and practical features, especially those who value sound while streaming. With the Bridge Cast, you can add sound effects to your voice, use multiple mixes of tracks and support "broadcast-grade" microphones and headphones.

With the Bridge Cast, you can quickly create a mix of anything you want to hear, such as microphone, chats, gameplay sounds and background music. You can adjust the mix to what you hear yourself and what your viewers hear for an optimal experience. You can also connect speakers via the line out and adjust the level with the level knob.

The unit is equipped with effects such as equalization, compression and a low-cut filter for softening harsh sounds and a noise surpressor for background noise. All effect processing is handled by the DSP chip, so your computer is spared.

The Bridge Cast is fully customizable. You can replace the faceplate and housing with a self-downloaded "skin" using a template. You can also change the LEDs color and save your own sound presets. This way you can quickly load your presets for certain games and hear dialogs or effects better

• Gaming/streaming interface

• Connections:

• Microphone (XLR type) with phantom power for condenser microphones

• Headphones/headset

• AUX 3.5 mm jack (TRRS) for smartphones and tablets

• Line out 3.5 mm jack (TRS) for smartphones and tablets

• USB port: type C

• Audio mixing bus: 2 (stream mix, personal mix)

• Sampling frequency: 44.1, 48 and 96 kHz

• Signal processing:
• AD/DA 24-bit

• 32-bit floating point internal processing

• Effects:

• Microphone: voice changer, noise surpressor, compressor, eq, de-esser, reverb,low cut
• Chat: de-esser, compressor

• Game: equalizer

• Stream: delay

• Power: bus power via USB-C, separately available AC adapter

• Supported operating systems:
  Microsoft Windows 10, Windows 11
  Apple macOS 11 or later (as of April 2023)
  Apple iOS 15 or later

• Dimensions: 222 x 110 x 70 mm

• Weight: 450 gr

• Included:
  USB-C to USB-C cable (2 m)
  USB-C to USB-A cable (2 m)
