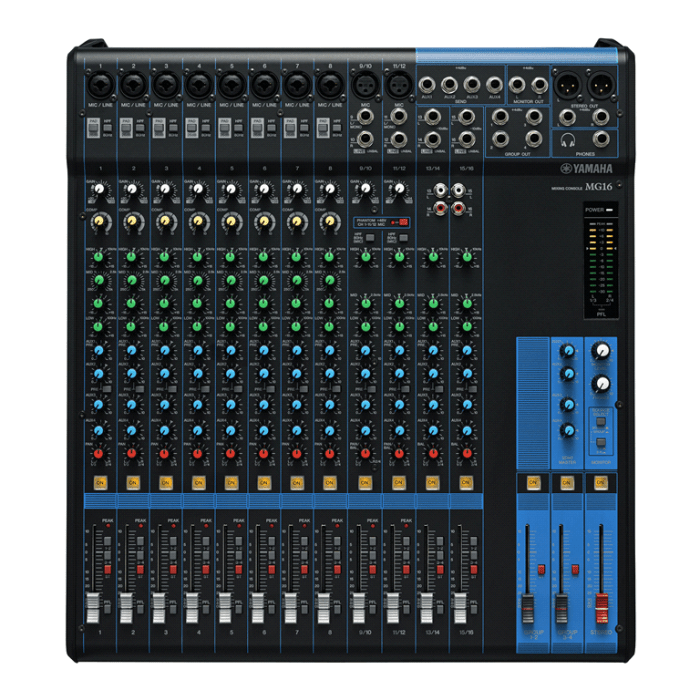

Yamaha MG16

The Yamaha MG16 is a 16-channel, feature-rich analog mixer with excellent sound quality that is well suited for mobile setups or permanent installations. The MG16's high-quality pre-amps ensure that your sound mix sounds transparent and clean. The MG16's crystal-clear D-PRE preamps squeeze every drop of tone out of your microphones, with natural-sounding bass and smooth highs. With switchable phantom power, a pad switch, one-button compressors, EQ, lots of I/O and LED metering, the MG16 can handle just about any task you throw at it. The MG16 takes advantage of many of the advanced features of Yamaha's high-end consoles and is ready to go to work for you!

Channels 1-8 also feature XLR/jack combo inputs, making it possible to connect either a jack or an XLR cable.

• rackmount kit included

• metal chassis for durability

• pad switch on mono inputs for managing loud sources

• 1-button compressors for easy dynamics control

• 3-band EQ on all mono channels for sound shaping

• D-PRE microphone preamps for clean, transparent and natural sound

Specifications:

• 16-channel mixer
• preamps: D-pre

• inputs: 10x XLR/Jack inputs, 4x stereo input (Jack/RCA)

• outputs: Main, headphones, group 1-2, group 3-4, monitor out

• aux: 4x jack (aux 1-2 switchable between pre- and postfader)

• EQ: channel 1 - 16 (channel 1-8 with parametric mid)

• compressor: channel 1 - 8

• phantom power: switchable channel 1 - 10

• VU meter: 2 x 12 segment LED meter

• dimensions: 444 x 130 x 500 mm

• weight: 6.6 kg

• material: metal

• power supply: built in

• including rack mount kit
