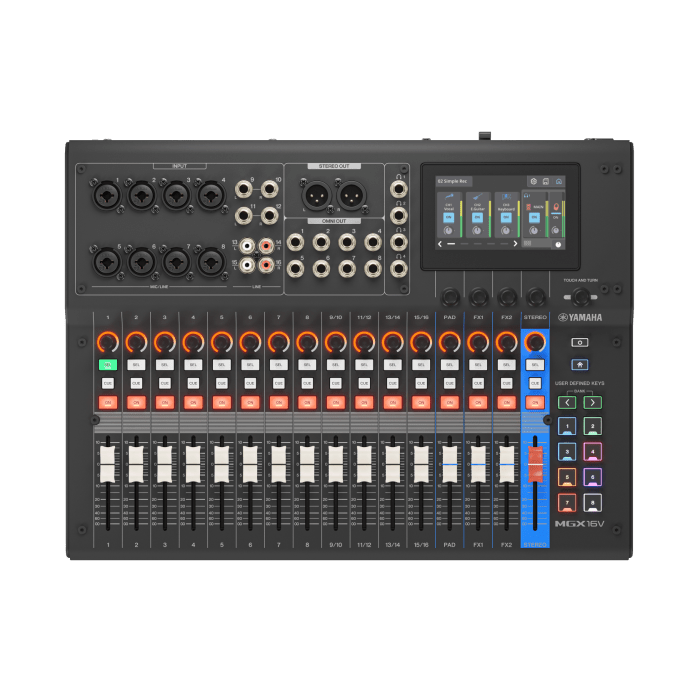

Yamaha MGX16V B

Building on the trusted MG series, the Yamaha MGX16V B (Black) combines studio-quality audio with flexible routing, intuitive controls and extensive video integration. This digital mixer is designed for modern productions that merge audio and video, such as livestreams, podcasts, hybrid events and music production.

Despite its extensive capabilities, operation remains uncluttered and direct. The MGX16V features 16 non-motorized faders, a bright 4.3-inch touchscreen and five physical control knobs. Eight high-quality MGX microphone preamps on Mic/Line combo inputs, along with 16 flexibly deployable mixing channels, provide a solid foundation for larger setups. In addition, the MGX16V features a 22-in / 22-out USB audio interface, Bluetooth audio input and an internal 16-track recorder that records directly to microSD card.

Unique to the MGX16V is the integrated USB-HDMI audio/video interface with capture function and real-time HDMI passthrough. This allows you to manage audio and video within one compact workflow, suitable for live, studio and broadcast applications.

Refine your mix with 'True Sound' accuracy
The MGX16V B features eight MGX microphone preamps and high-quality AD/DA converters that align with Yamaha's 'True Sound' philosophy. This results in a gain range of up to 86 dB, low distortion and a dynamic range of 125 dB. The internal DSP delivers high-quality digital effects and monitoring without latency. The comprehensive mixing structure includes mono and stereo channels, a dedicated Sound Pad, two FX channels and extensive Mix, FX, Cue and Stereo buses. Four headphone outputs ensure reliable monitoring in both live and studio situations.

[[READMORE]]

Creative workflows with audio as well as video
The Yamaha MGX16V acts as a multi-functional creative control center. Flexible routing and dual Main and Sub-USB ports give you a 22-in / 22-out USB audio interface, complemented by 2-track recording and playback through the Sub-port. Bluetooth makes wireless audio playback easy during performances, streams and studio sessions. Eight freely configurable pads allow you to activate sound effects or proprietary functions directly. With internal recording of up to 16 tracks and 2-channel playback from microSD, capture professional audio anywhere without an external recorder.

Smart controls that keep pace
The combination of physical controls and the clear touch screen makes the MGX16V B fast and pleasant to use. The 16 faders offer precise level control, supported by dedicated Send knobs, four freely assignable rotary knobs and a Touch & Turn controller. Smart auxiliary functions such as Smart Gain and Clip Safe help set stable levels. The Total FX section, which includes a Ducker and multiband compressor, ensures controlled and professional results. With quick Scene Recall and an optional Simple mode, you instantly switch between different setups.

Audiovisual power for professional productions
The MGX16V Black features HDMI In and HDMI Thru and a powerful USB-HDMI interface with capture functionality. This allows you to process and transmit audio and video simultaneously within one compact setup. The mixer supports resolutions up to 4K at 60 fps, 1440p at 120 fps and 1080p at 240 fps, making it easy to integrate cameras, game consoles and other video sources.

Close integration with Elgato and OBS Studio makes the MGX16V particularly well suited for livestreaming, podcasting, hybrid concerts and complete broadcast workflows, where audio and video work seamlessly together.

Yamaha MGX16V B features:

• 16-channel digital mixer with integrated audio and video functionality
• 16 non-motorized faders, 4.3-inch touchscreen and 5 control buttons
• 8 MGX microphone preamps on Mic/Line combo inputs
• 4 headphone outputs for extended monitoring
• 16 mix inputs with mono and stereo channels, Sound Pad, 2 FX channels and extensive bus structure
• 22-in / 22-out USB audio interface plus 2-track recording and playback via Sub-port
• Bluetooth audio input for wireless integration
• 8 adjustable pads for sound FX and functions
• internal 16-track recorder on microSD with 2-channel playback
• USB-HDMI audio/video interface with capture and real-time HDMI passthrough
• DSP with digital effects and latency-free monitoring
• Auto Gain, Clip Safe, Simple/Standard mode and Scene Recall
• comes with Steinberg production software and integration with Elgato and OBS Studio

Yamaha MGX16V B specifications

• 16-channel digital mixer
• color: black
• 8 inputs with microphone preamplifiers
• 8 inputs, line: 8 x XLR/6.35 mm combo, 4 x 6.35 mm
• 2x dual RCA stereo
• 2x XLR outputs - main
• 8 x 6.35 mm TRS jack outputs - direct
• 4x 6.35 mm TRS jack headphone outputs
• data I/O: 2 x HDMI (in/thru)
• USB: 2 x USB-C
• 16 faders
• 4,3 inch touch screen
• storage: microSD card slot
• software: Cubase AI, WaveLab Cast LE, Basic FX Suite and Steinberg Plus software bundle
• power supply: 16 V DC mains adapter
• manufacturer item number: MGX16V B
