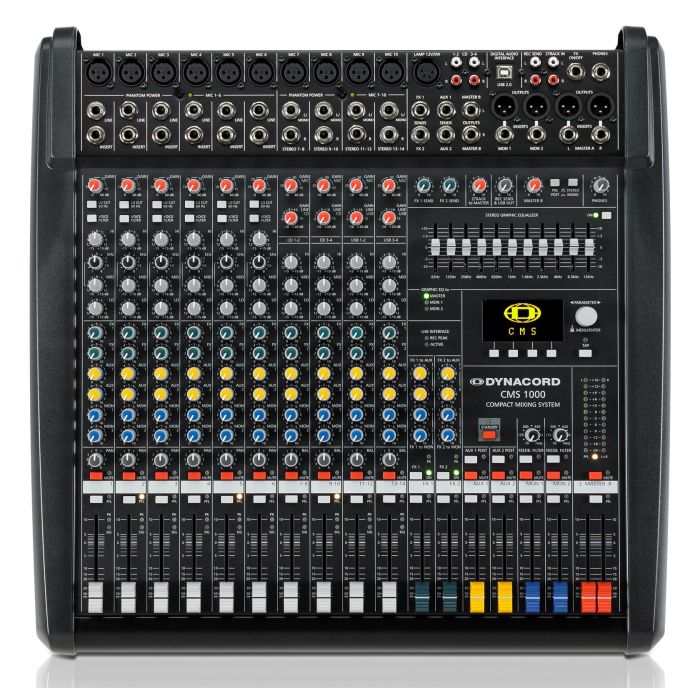

Dynacord CMS1000-3

The Dynacord CMS1000-3 is an analog mixing console with built-in effects processor. The mixer has captured the pole position in this analog market segment thanks to the quality of its sound, components and features. By integrating a high-quality mixer, two studio-quality digital effect processors, a graphic equalizer and a professional digital interface to PC or Mac, the CMS mixers are the ideal solution for a wide range of demanding applications in the audio sector.

The mix section starts with 10 discrete microphone preamps with the lowest noise. 6 auxiliary buses, two of which are pre/post fader switchable, offer high flexibility for monitoring. The two effect processors offer 100 factory presets, including the already legendary PowerMate reverbs. A TAP key allows precise setting of delay times. Furthermore, each preset can be edited and stored in 20 user memories.

The built-in USB audio interface shares 4 playback and 4 recording channels simultaneously with a PC or Mac (24-bit / 96 kHz). An additional MIDI interface allows integration of instruments, such as keyboards. A license for Steinberg Cubase software is part of the package.

The 11-band stereo graphic equalizer can be flexibly routed to master or monitor channels. An optional gooseneck lamp can be connected for dark environments. All faders are dust protected and not least the balanced XLR outputs for master and monitor underline the professional approach.

Optionally, a very robust cover with integrated handle is available. A solution that optimally protects the device and offers greater carrying comfort without the need for a large, heavy flight case.

Dynacord CMS-1000 MKIII specifications:

• Dynacord CMS 1000-3

• analog mixing console

• OLED screen (128 x 64 pixels)

• has +48V phantom power supply

• effects processor

• 11-band graphic EQ

• USB interface for recording
• dimensions: 498.5 x 510.5 x 155 mm (LxWxH)

• weight: 9.5 kg

In the box:
1x Dynacord CMS-1000-3
1x user manual
1x power cord (2 meters)
1x warranty certificate including safety instructions
1x instruction card for Steinberg Cubase LE
1x software license sheet for Steinberg Cubase LE

Dynacord Mat/N No.: F01U218735
Part number: DC-CMS1000-3-MIG
