Dynacord CMS600-3

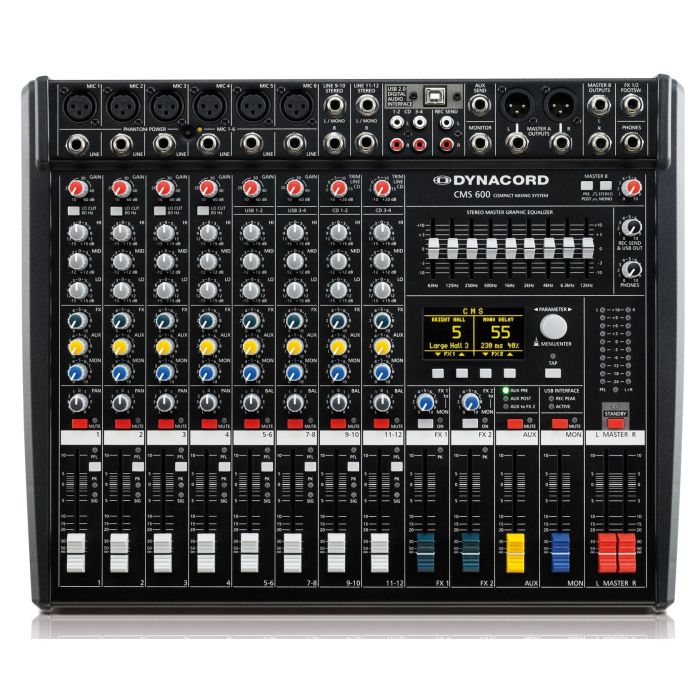

The Dynacord CM600-3 is a compact, analog mixing console. Thanks to its impressive features and versatility, the CMS 600-3 mixer is the ideal choice for all professional applications where few channels, yet high sound quality is required. The mixer is lightweight and compact in size; therefore, it is also ideal for taking with you.

The mixer has a built-in USB audio interface and effect processor. On the effect processor you can set two effects (e.g. reverb or delay), then adjust their total volume per channel. The CMS-600 is a very solidly built mixing console with 6 mono channels for microphone signals or normal line signals. There are also two stereo channels, to which you connect stereo devices (such as an audio player, tablet or keyboard). The stereo master output sends the sound to active speakers, where you can choose between XLR and 6.3 mm2 jack.

If you connect a computer (PC or Mac) to the USB connection, you can play up to 4 channels - from your DAW or DJ software, for example - via channels 5 and 6. Conversely, the signal from the mixer can also go back to your computer, for making 4-channel recordings.

The mixer can be mounted in a 19" rack using an RMK-600-3 rackmount kit (rackmount not included).

Specifications:

• Dynacord CMS600 MKIII analog mixer

• 6x mono channel (microphone/line) (XLR/6.3 mm jack)

• 2x stereo channel (line) (6.3 mm jack/RCA)

• master A out via XLR/6.3 mm jack

• master B out: 6.3 mm jack

• 2x effect processor

• 9-band master EQ
• built-in USB interface with 4 IN x 4 OUT channels (for PC or Mac)
• dimensions (WxHxD): 41.7 x 10.9 x 34.8 cm

• weight: 5.8 kg.
• Dynacord part no: DC-CMS600-3-UNIV
• MPN: F01U213891

The mixing console comes with:

1x manual
1x power cable (2 meters)
1x warranty certificate including safety instructions
1x installation card for Steinberg Cubase LE
1x software license sheet for Steinberg Cubase LE
