Art dPDB
two fully independent DI channels
transformer-isolated XLR outputs
up to 40 dB of switchable attenuation per channel
Ground-lift for interference-free connection
no power supply required thanks to passive design
- Buy 2 for €72.52 each and save 2%
- Buy 3 for €71.78 each and save 3%
- Buy 4 for €71.04 each and save 4%
- Buy 5 for €70.30 each and save 5%
- Buy 6 for €69.56 each and save 6%
- Buy 7 for €68.82 each and save 7%
- Buy 8 for €68.08 each and save 8%
- Buy 9 for €67.34 each and save 9%
- Buy 10 for €66.60 each and save 10%
Want to know when this item is back in stock? Send us your email address and we'll notify you as soon as it's available!
Our product experts are happy to help you!

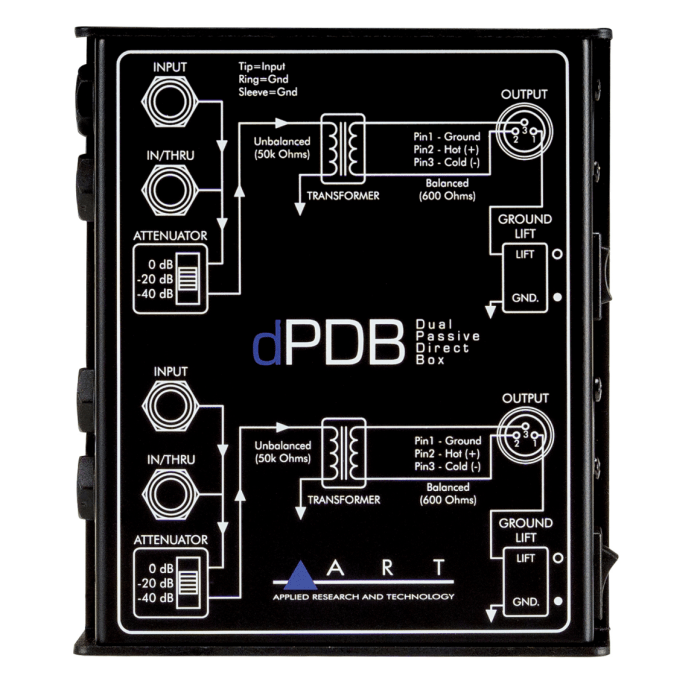

The ART dPDB is a two-channel passive DI box that allows you to convert unbalanced instrument, line or speaker signals to balanced XLR outputs. Ideal for use on stage or in the studio. Each input sends the signal to a balanced, transformer-isolated XLR output and a parallel Thru output, so you can simultaneously loop through to an amplifier on stage. Both channels feature a ground-lift switch to prevent hum, and offer up to 40 dB of attenuation.
Because the dPDB is designed to be completely passive, no power supply is required. This makes it particularly suitable for active instruments such as keyboards, synths and guitars or basses with built-in preamp. The solid steel housing ensures reliable, tour-resistant operation.
ART dPDB features:
- 2 independent channels
- 6.35 mm TS inputs with parallel Thru outputs
- balanced XLR outputs
- switchable attenuation (-20 dB / -40 dB) per channel
- ground-lift switch per channel
- fully passive design - no power supply needed
- solid steel housing
ART dPDB specifications:
- active/passive: passive
- outputs: 600 Ohm XLR
- input impedance: 50 kOhm
- output impedance: 600 Ohm
- frequency range: 10 Hz - 100 kHz (+/- 0.5 dB at +0 dBu)
- power supply: not required
- dimensions (h x w x d): 5.1 × 14.6 × 12.7 cm
| Brand | Art |
|---|---|
| Ean Code | 0840402011354 |
| Article number | 75426 |
