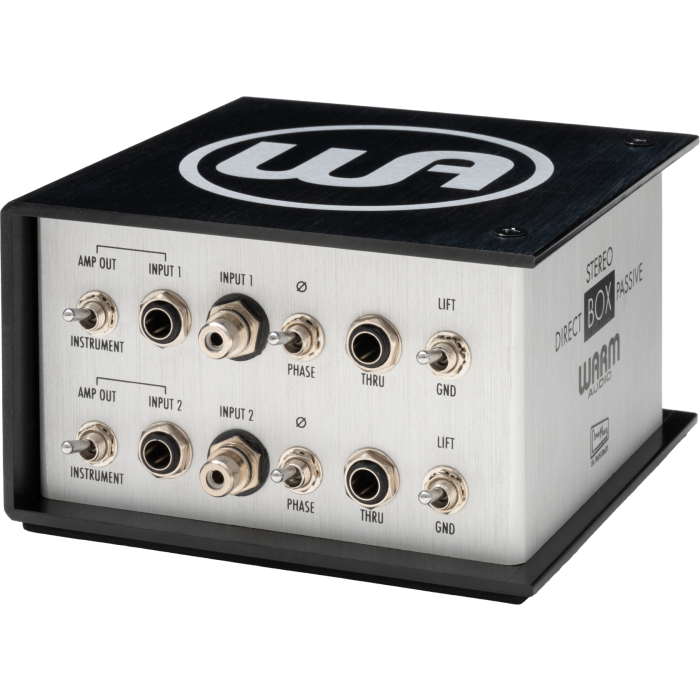

Warm Audio WA-DI-P2

The Warm Audio WA-DI-P2 is a high-quality 2-channel passive DI box for stereo sources such as keyboards, synthesizers, stereo pedalboards, modelers and playback rigs. This transformer-balanced direct box is designed for musicians, producers and live engineers who want to send a clean, balanced signal to mixing consoles, stage boxes or audio interfaces without loss of tonal character. Where many stereo sources require two separate DI boxes, the WA-DI-P2 combines both channels in one compact and rugged enclosure. This makes signal routing more manageable and reduces the risk of interference on stage or in the studio.

CineMag transformers for natural signal transfer
The WA-DI-P2 features premium CineMag USA transformers, designed to preserve the natural sound of your instrument while converting the signal to a balanced microphone-level signal. The result is a clear transmission with tight lows, open highs and excellent isolation from hum and interference.

Perfect for keyboards, synths and stereo rigs
This passive stereo DI is particularly well suited for higher output level sources such as stage pianos, synthesizers, drum machines, amp modelers and stereo effects chains. Thanks to the two-channel setup, you send left and right channels cleanly and consistently to FOH, recording interface or monitor environment.

[[READMORE]]

Variable pad and ground elevator
Per channel, the WA-DI-P2 features a variable pad from -3 dB to -30 dB. This allows you to fine-tune the output level and avoid overloading microphone preamps or mixing desks. The ground elevator function helps eliminate ground loops and hum problems, especially in live setups or more complex studio tracks.

Fully passive design, no power supply needed
Because the WA-DI-P2 is fully passive, no power supply or phantom power is needed. Connect and work. This makes it reliable for both fixed installations and mobile use.

Built for studio and stage
The sturdy metal housing is designed for intensive use on the road and on stage. Internally, Warm Audio employs Class-A components and gold-plated circuit boards for a stable and low-noise signal path. Like all Warm Audio products, this DI is hand tested and comes with a 5-year warranty.

Warm Audio WA-DI-P2 features:

• 2-channel passive stereo direct box
• transformer-balanced design with CineMag USA transformers
• ideal for keyboards, synths, modelers and stereo pedalboards
• variable pad per channel from -3 dB to -30 dB
• ground elevator switch against hum and ground loops
• balanced microphone output of 600 ohms
• input impedance of 1 MegaOhm
• frequency range 10 Hz to 100 kHz (±0.5 dB)
• very low distortion: less than 0.004% (50 Hz to 20 kHz)
• fully passive design, no power supply required
• robust aluminum housing
• class-A components with gold-plated traces
• dimensions: 12.7 x 14 x 7.1 cm
• weight: 0.78 kg
• 5 year warranty

Warm Audio WA-DI-P2 specifications:

• type: passive stereo DI box
• model: WA-DI-P2
• transformers: CineMag USA custom wound
• pad range: -3 dB to -30 dB
• output level: balanced mic-level
• output impedance: 600 ohms
• input impedance: 1 MOhm
• THD: 0.01% (20 Hz-50 Hz), <0.004% (50 Hz-20 kHz)
• frequency response: 10 Hz - 100 kHz ±0.5 dB
• housing: metal
