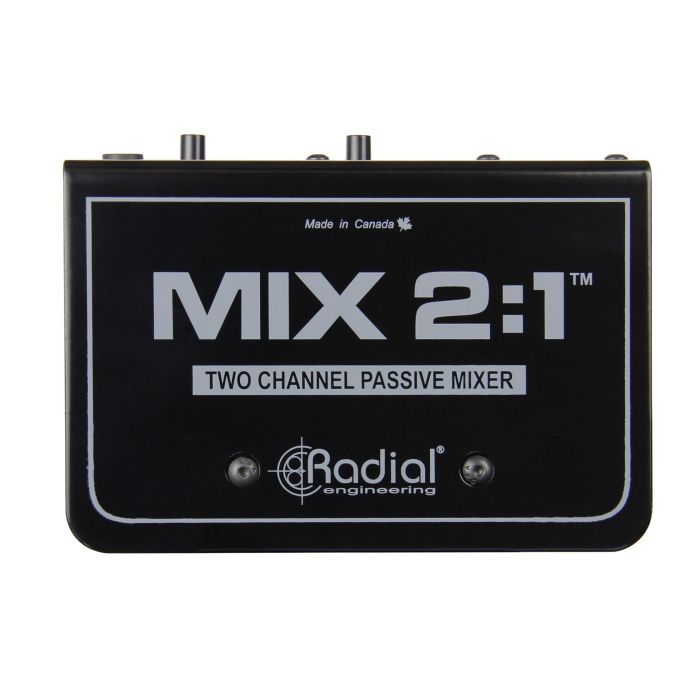

Radial Mix 2:1

Need a simple, reliable way to merge two audio channels into one mono channel? Then at Klundert Music, we'd be happy to recommend the Radial Mix 2:1. It is a passive 2-channel mixer that is rock solidly built. Connect two audio channels (XLR or jack) and the Mix 2:1 merges them into one mono channel with XLR output.

If you have a phase correction problem, simply press the 180 button to reverse the polarity of input 2. Use the front-panel input controls to balance your mix, or enable the bypass level control to sum both inputs equally. Whatever your application, you can count on the high-quality audio performance of the Radial Mix 2:1.

Radial Mix 2:1 Passive Mixer Features:

• passive 2-channel mixer with XLR and 1/4" inputs
• sums 2 channels into a single mono XLR output
• use the input controls to balance your mix or bypass the level controls for an even mix
• polarity-reverse switch solves phase cancellation problems
• ground-lift switches help reduce hum and buzz caused by ground loops
• high-fidelity audio with ultra-low noise floor
• rugged construction for long-term reliability

Radial Mix 2:1 Passive Mixer Specifications:

• Radial Mix2:1 passive two-channel mixer
• frequency range: 20 Hz - 20 kHz
• THD: >0.005%
• connections: 4x input (2x XLR, 2x 6.3 mm TRS jack) and output (XLR)
• housing material: steel
• finish: powder coated
• Radial part no: R800 1036
• Made in Canada
• dimensions: 127 x 83 x 47 mm (LxWxH)
• weight: 670 gr.
