Want to capture the pure signal from a guitar, bass guitar or keyboard without noise or loss of tone, even over long cable runs? If so, you need a DI box - and a high-quality one at that - to ensure that your sound is not compromised.

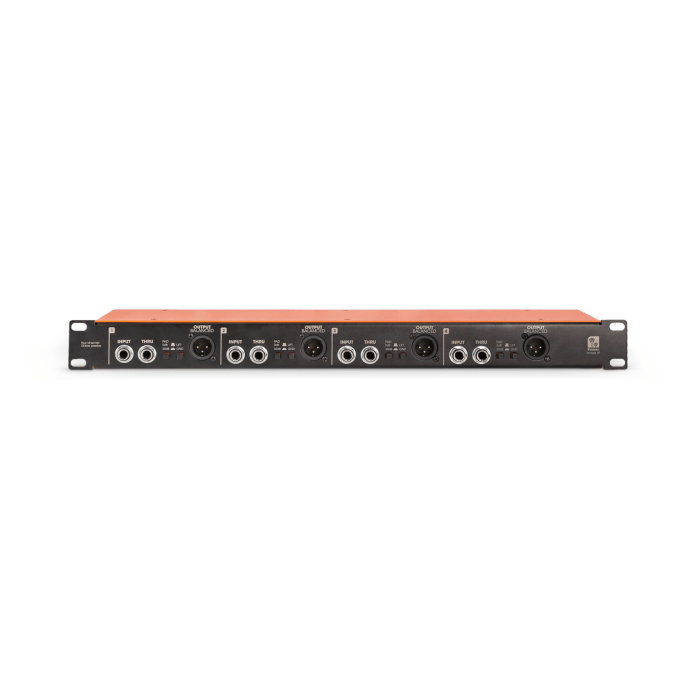

Palmer's BRIDGE 4P is a 4-channel passive DI box in 19" rack format with high-quality transformers that can handle even high levels without distortion or loss of the pure sound of your instrument. Each channel is equipped with a 1/4" jack input, a THRU output (to pass the input signals to an amplifier, for example) and two transformer-balanced XLR outputs - one at the front and one at the rear.
With a transformation ratio of 10:1, the transformers provide optimal impedance and level adjustment for connecting instrument signals from guitar, bass, keyboard or synthesizer to a balanced microphone input. At the same time, galvanic isolation prevents ground loop hum, keeping the signal clean, clear and ultra low noise, without any interference.
Thanks to a switchable 30dB pre-attenuation, the BRIDGE 4P can be powered with extremely high input levels in addition to line signals, meaning it can even be looped between, for example, the amplifier output and speakers. With the Audio-Over-Cat output, signals from all 4 channels can be routed through a single Cat (Cat5e or higher) cable. This saves material, space and time. Thanks to its passive design, the BRIDGE 4P requires no power supply, making it extremely reliable.
- balancing and impedance adjustment for guitar, bass, keyboards and synthesizers
- eliminates ground loop hum thanks to galvanic transformer isolation
- 4 independent DI boxes in a sturdy 19" housing (1U)
- extremely fail-safe, no power supply required
- THRU output for relaying the input signal
- audio over Cat output (AES72 Type 5e) for passing all signals through a single Cat cable
- pure and unaltered audio with low noise
- handles even high inputs without distortion thanks to switchable -30dB pad
- ground switch for each output
- made in Germany
