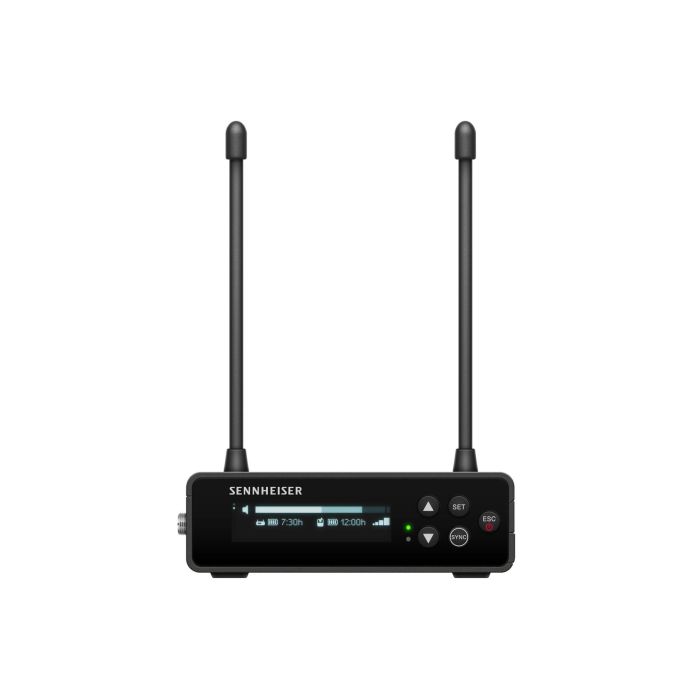

The Sennheiser EW-DP EK is a separate 1-channel receiver from the Sennheiser EW-DP series. This receiver is in the S1-7 frequency band (606.2 - 662 MHz).
You can mount this compact receiver directly on your camera with a cold shoe. It receives in the UHF spectrum with a wide bandwidth and only 1.9 ms latency. The chassis is equipped with magnets, so you can -if necessary- safely stack multiple receivers. Onboard Bluetooth automatically syncs your EW-DP receivers and gives you remote control via the Sennheiser Smart Assist app. The receiver also automatically manages the frequency band and checks for problems. And if something needs your attention, the EW-DP EK will send you a Smart Notification to let you know. EW-DP EK receivers are compatible with EW-D SK bodypack transmitters, EW-D SKM-S handheld transmitters and EW-D SKP plug-on transmitters.
A system that troubleshoots itself
The wireless RF experts at Klundert Music have used many wireless systems in the past. But there aren't many systems that solve problems for you by themselves. The system has an innovative Smart Notification feature to help you keep the system up and running. Once you're set up and connected, the wireless system automatically checks for problems. If the system detects problems, it sends you a Smart Notification. These notifications are triggered for things like clipping audio, dead batteries, blocked frequencies and more.
Control via the Smart Assist app
By downloading the Sennheiser Smart Assist app to your smartphone or tablet, it's easy to control an EW-DP system. Available for iOS and Android, the app gives you full control of the system in the palm of your hand. With the app, you benefit from automatic setup, operation and monitoring via Bluetooth. Meanwhile, automatic frequency coordination ensures a stable connection - even when using up to 16 systems simultaneously. Finally, the app has a support hub, video tutorials and detailed user guides to get you up and running quickly.
Magnetic Mounting
Where most wireless receivers take you precious time to free up space and set up, the EW-DP EK's magnetic mounting design helps you set up the system in seconds. Magnets are built into the corners of the receiver, allowing you to easily and securely attach the receiver to the included mounting plate. You can also use the built-in magnets to stack multiple EW-DP EKs on top of each other for applications requiring two or more microphones. Finally, your EW-DP EK receiver includes a magnetic mounting plate, a cold-shoe attachment for cameras, a belt clip and other mounting hardware.
More about this EW-DP series
Time is a precious commodity when you're on location, so setting up the system easily and quickly is a top priority. The Sennheiser EW-DP series puts time on your side with simple, reliable wireless audio products. Each product in the series offers advanced technology and ergonomic designs. The EW-DP series uses all-digital UHF transmission for an incredibly clear signal and automatic frequency coordination to prevent dropouts. Then the systems are controllable via Bluetooth and even send Smart Notifications when a problem occurs. Whether you're working alone or with a crew, EW-DP wireless helps simplify your work without compromising sound quality. Video production has enough challenges as it is; sound doesn't have to be one of them.
Sennheiser EW-DP EK specifications:
- power supply: 2x AA batteries 1.5V or BA 70 rechargeable battery pack, or USB-C PD power supply (max.): 5V / 1500 mA, 9V / 900 mA, 12V / 700 mA
- Bluetooth transmission power: BLE: 10 mW EIRP max
- 134dB dynamic range provides distortion-free transmission
- OLED display ensures optimal visibility
- receiver can also be powered via USB-C connection
- headphone output: <50 mW @ 16 Ohm
- dimensions: 8.6 x 6.7 x 2.8 cm
- weight without antennas and power supply: 140 gr.
in the box comes:
- 1x EW-DP EK receiver
- 1x mounting kit with plate, cold shoe, belt clip & screws
- 1x BA 70 battery pack & 2x AA batteries
- 1x CL 35 cable, 3.5 mm2 TRS mini-jack plug with thread -> 3.5 mm2 TRS mini-jack plug
- 1x CL35-XLR cable, 3.5 mm2 TRS mini-jack plug with screw thread -> XLR plug (male)
- 1x USB-C charging cable
