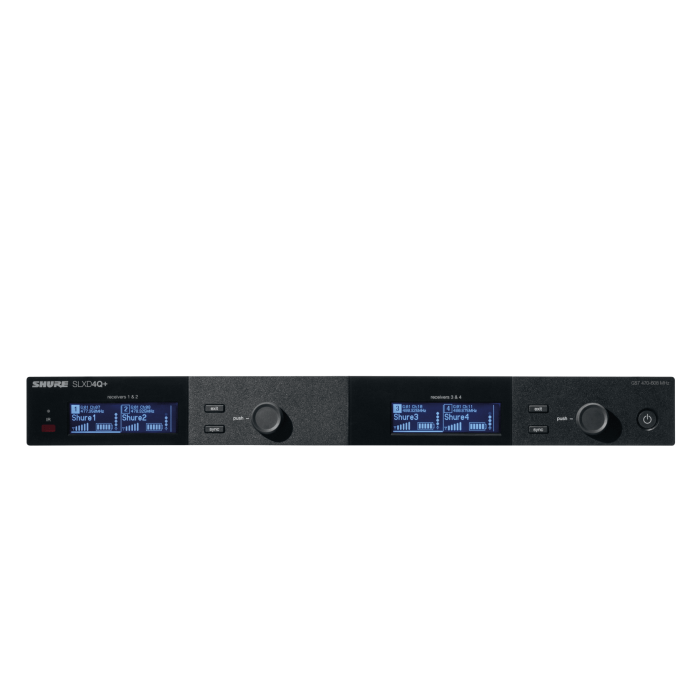

Shure SLXD4Q+E=-G65

Building on the proven SLX-D series, the Shure SLXD4Q+ is designed for professional applications where reliability, scalability and sound quality are key. This four-channel digital receiver combines clear 24-bit audio with stable RF performance and a wide tuning range, making it trouble-free for use in a variety of environments. Smart features such as internal audio summing, RF cascading and bias voltage for active antennas allow you to get maximum flexibility from a single 19-inch rack unit.

The SLXD4Q+ comes in a robust metal housing and takes up only 1HE of rack space. This allows you to increase the number of wireless channels without sacrificing available rack space. The wide tuning range of 136 MHz allows you to use this receiver in busy RF environments without having to switch between different frequency versions.

[[READMORE]]

If you don't have separate mixer inputs available for all four channels, the internal audio summing offers a solution. It lets you sum the signals from four, three or two channels to one or more outputs, matched to the number of free inputs on your mixer. RF cascading also makes it possible to link two SLXD4Q+ receivers into one eight-channel system, without additional accessories or special cabling.

In terms of audio, the SLXD4Q+ delivers transparent and detailed sound thanks to 24-bit digital audio, a frequency range of 20 Hz to 20 kHz and a dynamic range of 118 dB. Predictive switching diversity ensures a stable connection even when RF conditions are less than ideal. Pairing with an SLX-D/SLXD+ transmitter is quick via IR scanning and synchronization. In addition, the receiver is compatible with external control systems from AMX, Crestron and others.

The Shure SLXD4Q+E receiver is the version without Dante (digital network audio) connection.

Shure SLXD4Q+E=-G65 features:

• four-channel digital wireless receiver in 1HE rack format
• wide tuning range (136 MHz) for use in busy RF environments
• internal audio summing for flexible use with limited mixer inputs
• RF cascading for expansion to an eight-channel system
• bias voltage for active directional antennas without external power supply
• 24-bit digital audio with frequency range of 20 Hz - 20 kHz
• dynamic range of 118 dB for high signal-to-noise ratio
• predictive switching diversity for stable RF connection
• IR scan and synchronization for quick pairing with SLX-D/SLX-D+ transmitters
• compatible with external control systems such as AMX and Crestron

Connections:

4x microphone output (XLR)
4x line output (6.3 mm2 TRS jack)
2x Ethernet (RJ-45)

Shure SLXD4Q+E=-G65 specifications:

• 4-channel digital wireless receiver
• frequency range receiver: 470 - 606 MHz
• antenna: detachable
• display: yes, on front panel
• rack height: 1HE
• power supply: 15 V DC
• dimensions: 42 x 393 x 152 mm
• weight: 1750 gram
• manufacturer article number: SLXD4Q+=-G65

For use in the Netherlands we recommend the -G65 band. This receiver gives you 136 MHz bandwidth, from 470 - 606 MHz. If you want to expand even further (you want to deploy many channels) there is also a -K55 band available. This has a bandwidth of 88 MHz and runs from 606 - 694 MHz. Perfect to connect to the -G65 variant.
