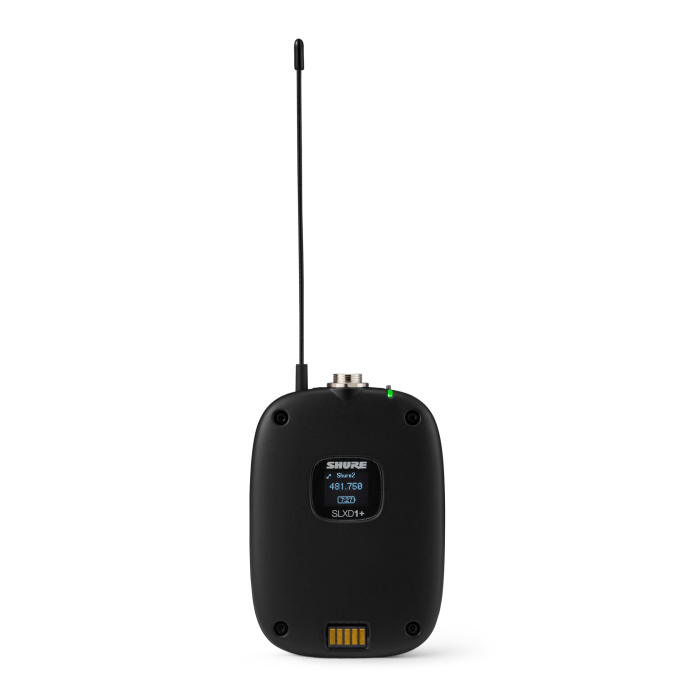

Shure SLXD1+=-G65

The Shure SLXD1+=-G65 is a digital bodypack transmitter from the SLX-D+ series, designed for professional applications where reliability, control and audio quality are key. This transmitter delivers transparent 24-bit audio with a stable UHF link to SLX-D+ receivers and is suitable for lavalier, headset and instrument applications thanks to its TA4M connector.

With its wide tuning range of 136 MHz and ShowLink® Ease control link, the SLXD1+ automatically stays in sync with paired SLX-D+ receivers. Interference is actively managed and in the event of interference, the system can automatically switch to a free frequency. Via Wireless Workbench and the mobile app, full monitoring and configuration is possible both locally and remotely.

Shure SLXD1+=-G65 features:

• digital bodypack transmitter for SLX-D+ wireless systems
• frequency band G65: 470 - 606 MHz
• 24-bit/48 kHz audio conversion with >118 dB dynamic range
• 136 MHz tuning range for flexible frequency management
• ShowLink® Ease for remote transmitter settings and automatic frequency switching
• TA4M (4-pin mini XLR) connector for lavalier, headset and instrument cables
• high pass filter for control of low-frequency contact and handling noise
• firmware updates via Bluetooth
• AES-256 encryption for secure wireless audio
• power supply via AA batteries or optional SB903 lithium-ion battery
• compact and lightweight housing

[[READMORE]]

What's new about SLX-D+ (vs. SLX-D)?

• 136 MHz wide tuning range for deployment in multiple regions, supporting up to 14 simultaneous systems within 8 MHz TV bands
• ShowLink® Ease allows remote adjustment of transmitter settings through the receiver, including:
• automatically switching to a free frequency in the event of interference
• adjusting transmitter gain
• locking and unlocking of transmitter controls
• wireless updating of transmitter firmware
• full monitoring via Wireless Workbench and WWB Mobile app (Bluetooth and Wi-Fi)
• AES-256 encryption standard for secure wireless transmission

What hasn't changed

• same transparent 24-bit digital audio with >118 dB dynamic range
• stable RF performance and reliable Shure signal quality
• compatibility with existing SLX-D and SLX-D+ receivers
• support for AA batteries and Shure SB903 lithium-ion batteries

In the box:

• Shure SLXD1+ bodypack transmitter
• zippered carrying case
• 2x AA alkaline battery

Shure SLXD1+=-G65 specifications:

• housing: PC/ABS (plastic composite)
• power: battery: 2x AA or optional SB903 lithium-ion battery
• audio input: connector: TA4M (4-pin mini connector)
• configuration: unbalanced
• impedance: 1 MOhm
• max input level: 8.2 dBV (2.57 Vrms)
• equivalent input noise (EIN): -118 dBV
• RF output: antenna type: 1/4-wave
• transmit power: 10 mW
• dimensions (h x w x d): 98 x 68 x 25.5 mm
• weight: 89 gr.
