Shure SLXD14+E-G65

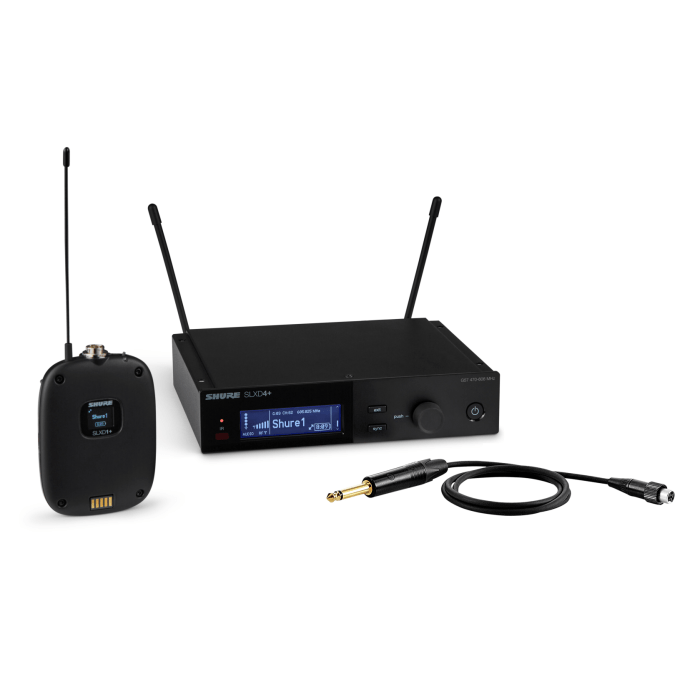

The Shure SLXD14+E-G65 is a complete SLX-D+ wireless set featuring a 1-channel rack receiver and a bodypack transmitter, supplied with WA305 premium instrument cable. This set is designed for guitarists, bassists and other applications where a bodypack solution is desired. With transparent 24-bit digital audio and stable RF performance, the system delivers a clean, direct and reliable signal even in busier RF environments.

SLX-D+ introduces ShowLink® Ease: a separate control link between transmitter and receiver. This automatically keeps both in sync, actively monitors interference and allows the system to switch independently to a free frequency. Via Wireless Workbench and the mobile app, monitoring and configuration are easily possible. This makes the SLXD14+E-G65 well suited for live performances, fixed installations, churches, theaters and rentals.

Shure SLXD14+E-G65 features:

• complete 1-channel wireless set with SLXD4+ receiver and SLXD1+ bodypack transmitter
• supplied with WA305 premium instrument cable (TA4F to 6.35 mm jack)
• frequency band G65: 470 - 606 MHz
• 24-bit/48 kHz digital audio with >118 dB dynamic range
• 136 MHz tuning range for flexible frequency management
• ShowLink® Ease for remote transmitter settings and automatic frequency switching in the event of interference
• Shure Digital Feedback Reduction against feedback
• AES-256 encryption for secure wireless transmission
• Bluetooth and network management (receiver dependent) for monitoring and control
• rack-ready accessories for neat mounting in flight case or rack

[[READMORE]]

What's new in SLX-D+ (vs. SLX-D)?

• 136 MHz wide tuning range for wide applicability
• ShowLink® Ease control link for remote management and automatic functions, including frequency switching upon
• interference and adjustment of transmitter parameters
• Shure Digital Feedback Reduction integrated into SLX-D+ receivers
• AES-256 encryption standard for secure wireless audio

What hasn't changed

• transparent 24-bit digital audio quality with >118 dB dynamic range and 2.8 ms latency
• monitoring and control via Wireless Workbench and WWB Mobile app (iOS/Android)
• operation on AA batteries or optional Shure SB903 lithium-ion batteries

In the box:

• Shure SLXD4+ 1-channel digital receiver (half-rack)
• Shure SLXD1+ bodypack transmitter
• WA305 premium instrument cable (TA4F to 6.35 mm jack, 0.7 m)
• 2x 1/4-wave antenna
• 2x bulkhead adapter
• 2x 55.88 cm (22 in.) BNC cable
• rackmount kit
• carrying case
• 2x AA battery

Shure SLXD14+E-G65 specifications:

• operating range: up to 100 m (depending on environment)
• latency: 2.8 ms
• audio frequency response: 20 Hz - 20 kHz (+1, -2 dB)
• encryption: AES-256

SLXD4+ receiver:

• dimensions (h x w x d): 42 x 197 x 152 mm
• audio outputs: XLR and 6.35 mm TRS (balanced)
• gain range: -18 to +42 dB (1 dB steps)
• network: Ethernet 10/100, DHCP or manual IP

SLXD1+ bodypack transmitter:

• connection: TA4F (TQG)
• compatible with instrument, lavalier and headset microphones
• antenna type: integrated
• transmission power: 10 mW
