Shure SLXD14+E/SM35-G65

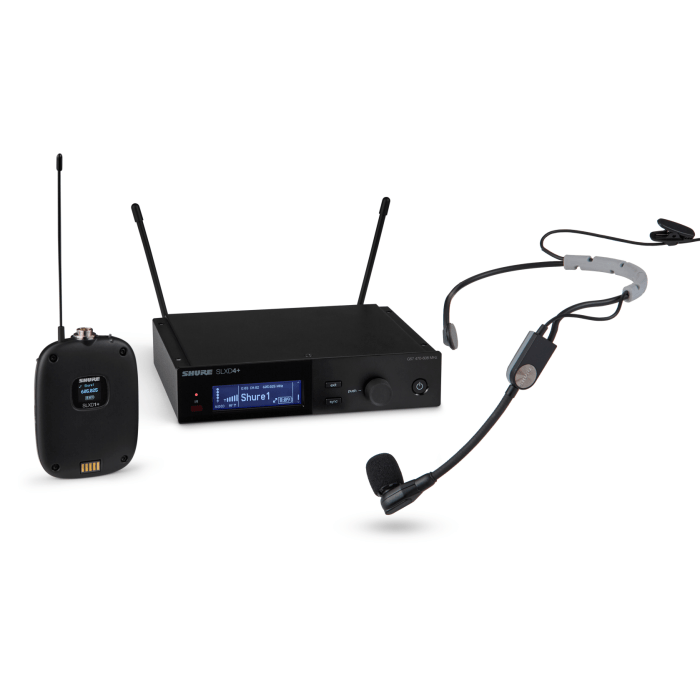

The Shure SLXD14+E/SM35-G65 is a complete SLX-D+ wireless set with a 1-channel rack receiver and bodypack transmitter, supplied with the SM35 cardioid headset microphone. This set is designed for applications requiring maximum freedom of movement, stable placement and high speech or vocal intelligibility, such as fitness instruction, presentations, singing, theaters and churches. With transparent 24-bit digital audio and stable RF performance, sound quality remains consistent even in environments with many wireless systems.

SLX-D+ introduces ShowLink® Ease: a separate control link between transmitter and receiver. This automatically keeps both in sync, actively monitors interference and allows the system to switch independently to a free frequency. Via Wireless Workbench and the mobile app, monitoring and configuration are easily possible. This makes the SLXD14+E/SM35-G65 suitable for fixed installations, mobile use and rental.

Shure SLXD14+E/SM35-G65 features:

• complete 1-channel wireless set with SLXD4+ receiver and SLXD1+ bodypack transmitter
• supplied with SM35 cardioid electret condenser headset microphone
• frequency band G65: 470 - 606 MHz
• 24-bit/48 kHz digital audio with >118 dB dynamic range
• 136 MHz tuning range for flexible frequency management
• ShowLink® Ease for remote transmitter settings and automatic frequency switching in the event of interference
• Shure Digital Feedback Reduction against feedback
• AES-256 encryption for secure wireless transmission
• Bluetooth and network management (receiver dependent) for monitoring and control
• slrack-ready accessories for neat mounting in flight case or rack

[[READMORE]]

What's new about SLX-D+ (vs. SLX-D)?

• 136 MHz wide tuning range (region-dependent) for more usability, with up to 14 simultaneous systems in 8 MHz TV bands
• ShowLink® Ease control link for remote management and automatic functions, including frequency switching upon
• interference and adjustment of transmitter parameters
• Shure Digital Feedback Reduction integrated into SLX-D+ receivers
• AES-256 encryption standard for secure wireless audio

What hasn't changed

• transparent 24-bit digital audio quality with >118 dB dynamic range and 2.8 ms latency
• monitoring and control via Wireless Workbench and WWB Mobile app (iOS/Android)
• operation on AA batteries or optional Shure SB903 lithium-ion batteries

In the box:

• Shure SLXD4+ 1-channel digital receiver (half-rack)
• Shure SLXD1+ bodypack transmitter
• SM35 cardioid headset microphone
• 2x 1/4-wave antenna
• 2x bulkhead adapter
• 2x 55.88 cm (22") BNC cable
• rackmount kit
• carrying case
• 2x AA battery

Shure SLXD14+E/SM35-G65 specifications:

• operating range: up to 100 m (depending on environment)
• latency: 2.8 ms
• audio frequency response: 20 Hz - 20 kHz (+1, -2 dB)
• encryption: AES-256

SLXD4+ receiver:

• dimensions (h x w x d): 42 x 197 x 152 mm
• audio outputs: XLR and 6.35 mm TRS (balanced)
• gain range: -18 to +42 dB (1 dB steps)
• network: Ethernet 10/100, DHCP or manual IP

SLXD1+ bodypack transmitter:

• connection: TA4F (TQG)
• compatible with lavalier and headset microphones
• antenna type: integrated
• transmission power: 10 mW
