Tascam MM-4D-IN-X

The Tascam MM-4D/IN converts four microphone or line inputs to four Dante outputs. In addition, the unit also supports four Dante inputs, so virtually any audio source can be used within an existing Dante network.

The analog inputs are available with Euroblock connectors (MM-4D/IN-E) or XLR connectors (MM-4D/IN-X), making the model suitable for a variety of applications. This is the version with XLR connectors.

A key advantage is the built-in DSP processor. This provides not only mix and EQ functions, but also dynamic processing, automatic level control, auto-ducking, routing and noise reduction. This allows even small systems to function fully without additional signal processors or mixers. From microphone input to output to active speakers or recording equipment, the Dante Compact Processor Series lets you build a complete small-scale system.

Remote control is possible via two free software applications for Mac, Windows, iOS and Android: Tascam DCP Connect for configuration and Tascam EZ Connect for end users. The MM-4D/IN can additionally mute inputs via GPI.

All models can be powered via PoE or with an (optional) power adapter. When placing two units side by side in a rack, it is possible to power both units with one adapter by using power daisy-chaining.

Tascam MM-4D/IN features:

• 4 balanced microphone/line inputs with 48 V phantom power supply
• MM-4D/IN-X: XLR connections
• Dante interface for audio transfer over Ethernet network
• 2 LAN connections for Dante daisy-chaining
• flexible routing via "Dante Controller" software
• AES67 support for connection to Ravenna and other compatible audio networks
• up to 96 kHz sampling frequency and 24-bit resolution

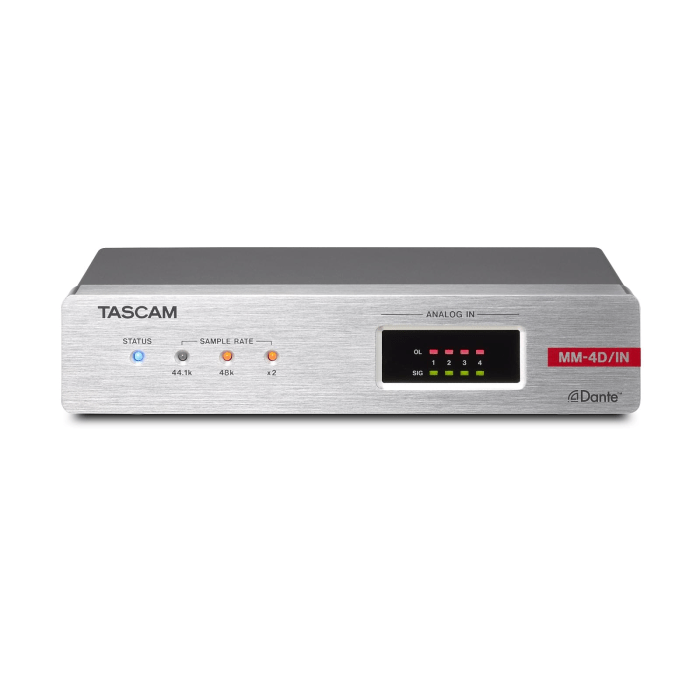

• front panel indicators for status and current sample rate
• signal and overload indicators for analog inputs
• inputs mutable via GPI
• power daisy-chaining for 2 units with one power adapter
• half-rack housing (1HE)
• including mounting materials, e.g. for under-table mounting

Please note that the MM-4D/IN comes without a power adapter. This is available separately.
