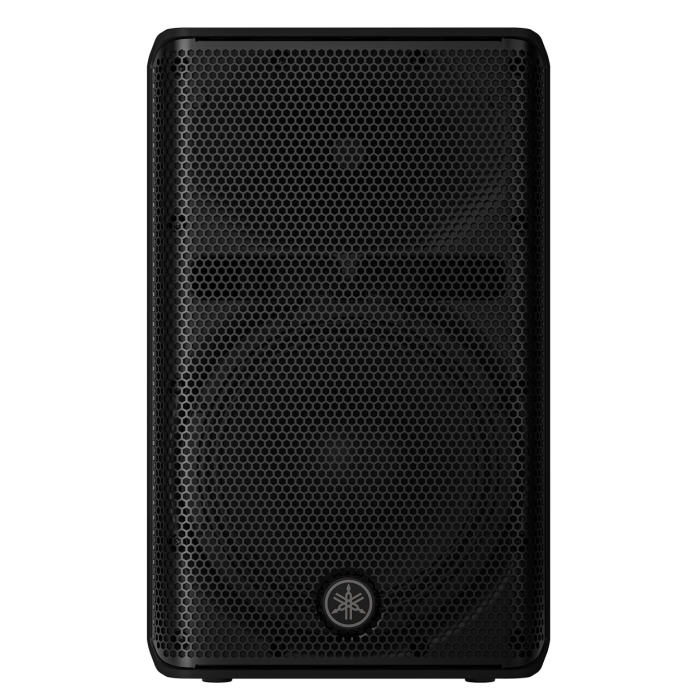

Yamaha DXR10 mk3

The Yamaha DXR10mk3 is made for users who want powerful performance without complicated controls. This third-generation DXR loudspeaker builds on the reputation of the DXR series, bringing it up to date for live sound, mobile PA applications, installations and rentals. The DXR10mk3 combines a newly developed 10-inch LF woofer with a 1.75-inch HF compression driver and a 2000-watt Class-D amplifier. This delivers clear, powerful sound with a frequency range of 53 Hz to 20 kHz and a maximum sound pressure of 132 dB SPL.

Use the Yamaha DXR10mk3 as a compact front-of-house speaker, floor monitor, speech amplifier or part of a mobile sound set. The built-in DSP with 96 kHz processing, FIR-X tuning and Drive Motion Calibration ensures a tight sound, good phase response and controlled low-end reproduction. Thanks to Bluetooth audio streaming, dual inputs and control via the D-Remote app, this active speaker quickly adapts to any setup. The LCD display with encoder gives instant access to settings such as presets, PEQ, delay, routing and system functions.

Reliable design
The Yamaha DXR10mk3 is the most compact speaker in the DXR mk3 series. The cabinet is light enough for mobile use, but solidly built for regular transport, stage use and fixed installations. The 10-inch woofer delivers a tight bass response, while the 1.75-inch compression driver provides clear highs and good intelligibility. Together, they give the DXR10mk3 enough projection for vocals, instruments, DJ sets, backing tracks and presentations. The redesigned horn construction improves dispersion over a wide frequency range. Optimized port placement helps reduce cabinet resonances and standing waves, keeping the low end controlled even at higher volumes. The injection-molded plastic enclosure features a symmetrical design, making the speaker well suited for use as a floor monitor as well. The dual stand flange allows the speaker to be positioned straight or with a downward tilt of -7°.

[[READMORE]]

DSP with FIR-X and Drive Motion Calibration
The Yamaha DXR10mk3 uses internal DSP processing at 96 kHz. This processing ensures high resolution, low latency and stable sound reproduction. Yamaha's Advanced FIR-X Tuning uses linear phase FIR filters for the crossover network and correction EQ. This closely matches the woofer and driver, with fewer phase problems and less distortion around the crossover point. Drive Motion Calibration corrects the motion of the LF driver. This allows the woofer to follow the input signal more accurately and keeps the low end tighter and more linear. This is especially important in live vocals, speech and music reproduction where definition and control are needed. As a result, the DXR10mk3 maintains its clarity and pressure even when the speaker has to work harder.

Quick operation with LCD screen, Bluetooth and D-Remote app
The Yamaha DXR10mk3 is designed for quick set-up and easy operation. On the back is an easy-to-read LCD screen with encoder. It allows you to control presets, equalizer settings, delay, routing and system parameters without complicated menus. Up to eight user presets can be stored so you can quickly recall settings for locations or applications. Bluetooth lets you stream audio, and the D-Remote app lets you control the speaker remotely from an iOS or Android device. The app provides access to features such as level, delay, equalizer, crossover, feedback cancellation, ducker, identification, panel lock and save or recall scenes. You can also check limiter status, temperature and error messages. Up to ten devices can be paired, with group control for level and mute.

Suitable for front-of-house and monitoring
The DXR10mk3 features DSP modes for different applications. FOH/MAIN is intended for use as a main speaker and amplifies the high and low frequencies for a fuller sound. MONITOR is tuned for floor monitor use and helps reduce excess bass that can occur when the speaker is on the floor. The AUTO V/H POSITION function uses an internal accelerometer to recognize the position of the speaker and choose the correct setting. For speech and live use, intelligent feedback suppression is a key advantage. The system can reduce feedback in real time for handheld and fixed microphones. This makes the DXR10mk3 suitable for bands, DJs, presentations, corporate events, hospitality, schools, churches and rental companies.

Yamaha DXR10MKIII features and specifications:

• active 2-way speaker with bi-amping for live sound, mobile PA and fixed installation
• newly developed 10-inch LF woofer and 1.75-inch HF compression driver
• 2000 watt class-D amplifier with 1000 watts RMS and 2000 watts peak power
• frequency range from 53 Hz to 20 kHz
• maximum sound pressure level of 132 dB SPL
• DSP processing at 96 kHz for clear signal processing with low latency
• Yamaha Advanced FIR-X Tuning for improved phase reproduction and reduced crossover distortion
• Drive Motion Calibration for tight and controlled low-end reproduction
• intelligent feedback suppression for handheld and fixed microphones
• FOH/MAIN and MONITOR modes with AUTO V/H POSITION
• Bluetooth audio streaming for fast wireless playback
• D-Remote app for iOS and Android for control, monitoring and system management
• LCD display with encoder for quick access to presets, PEQ, delay and routing
• store up to eight user presets
• 2x XLR/6.35 mm jack combo inputs with line and line/mic switching
• 2x XLR/6.35 mm jack combo outputs with Thru/Output and Thru/DSP Out
• adjustable input sensitivity from -∞ to +10 dB
• dispersion angle of 90° x 60°
• monitor tilt angle of 55°
• 35 mm tripod lens with straight positioning or -7° tilt
• eye bolt attachment points and optional U-bracket
• plastic housing with one top handle
• dimensions of 31 x 50.2 x 31 cm
• weight of 14,5 kg
• black finish
