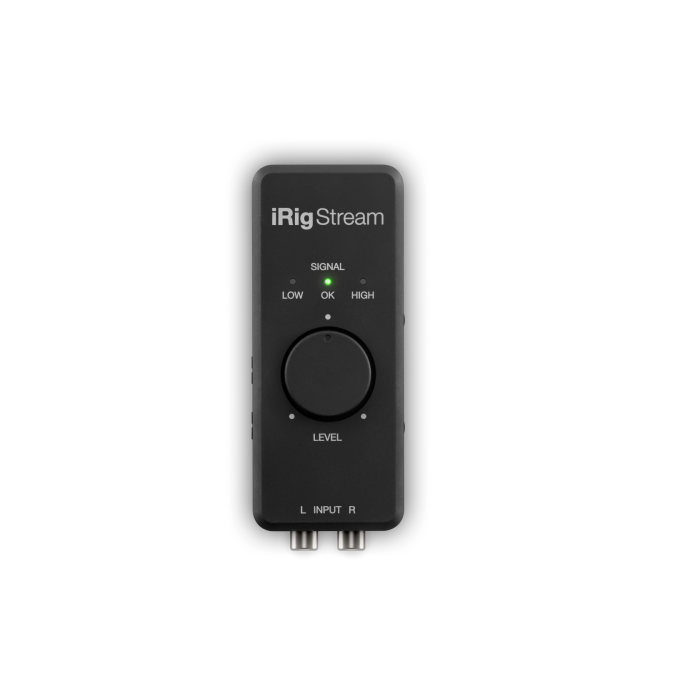

IK Multimedia iRig Stream

A wonderful entry-level audio interface to get started in the world of streaming. With 24-bit, 96 kHz A/D and D/A converters, you get a beautifully clear signal. Connect your microphone, keyboard, DJ deck, or even your phone's output to the iRig to stream the signal. The direct monitoring feature lets you assess the quality of your sound before it goes live, so you can always be sure you sound good. A gain knob with LED indicator ensures that your signal is never too strong or too weak.

iRig Stream offers a unique headphone/microphone input that works the same as your smartphone's, allowing it to work with most headphones or in-ears with a built-in microphone. Also works with other IK Multimedia products such as iRig Mic Lav, iRig Mic, and iRig Pre, so plenty of options for almost any situation imaginable.

Features:

General

• Type: 2 in/2out or 4 in/2out
• Conversion: 24-bit A/D, 24-bit D/A
• Sampling Rate: 44.1 kHz, 48 kHz, 88.2 kHz, 96 kHz
• Power: USB bus-powered. 48V operations with iOS devices require battery or DC IN. When connected to an external power supply (iRig PSU 3A, not included), iRig Stream Pro charges the connected iOS Lightning device.
• Metering: 3x LEDs for total streaming signal. Peak meter for Mic/Inst input.
• Device connection: mini-DIN
• Dimensions: 123mm/4.84" x 67mm/2.63" x 40mm/1.57"
• Weight: 146g

Line input

• Connector: 2x RCA (unbalanced) Left/Right
• Nominal Input Level: -10 dBV
• Head Room: 10 dB - Level @ max
• Input Impedance: 16.5k Ohms
• Frequency Response: from 20 Hz to 20 kHz (-1.5 dB)

Microphone input

• Microphone input: balanced, XLR. Pin 2: hot / Pin 3: cold / Pin 1: ground
• Microphone input level: from 3.8 mV RMS to 388 mV RMS
• Microphone input impedance: approx. 2 kOhm
• Analogue Gain Range: 40 dB
• Phantom power supply: +48 V ± 4 V
• Frequency Range:
  • from 20 Hz to 20 kHz (-1 dB) Gain @ min
  • from 20 Hz to 20 kHz (-3 dB) Gain @ max

Instrument input

• Instrument input: unbalanced, Hi-Z, TS 1/4" Jack, Tip: signal / Shield: ground
• Instrument input level: from 70 mV RMS to 1.8 V RMS
• Instrument input impedance: 1M Ohm
• Analog Gain Range: 28 dB
• Frequency Range:
  • from 20 Hz to 20 kHz (-1 dB) Gain @ min
  • from 20 Hz to 20 kHz (-3 dB) Gain @ max

Headset / Earphones

• Connector: 1/8" TRRS jack (CTIA cabling standard)
• Supply voltage: > 2.5 V
• Microphone gain: Adjustable with numbered thumbwheel
• Frequency range: 20 Hz - 20 kHz
• Headphone level control: numbered thumb wheel

Battery life

• Phantom power On with iOS device: up to 20 hours (Alkaline batteries), with microphone input connected to 3.1 mA phantom power load

Note: All measurements were taken with Stream Level knob set to 0dB.

Package Contents

• iRig Stream Pro interface
• Lightning to mini-DIN connection cable with charging function (60cm/23.62")
• USB C-Type to mini-DIN connection cable (60cm/23,62")
• USB A-Type to mini-DIN connection cable (60cm/23,62")
• 2x 1.5V AA battery
• Velcro strap
