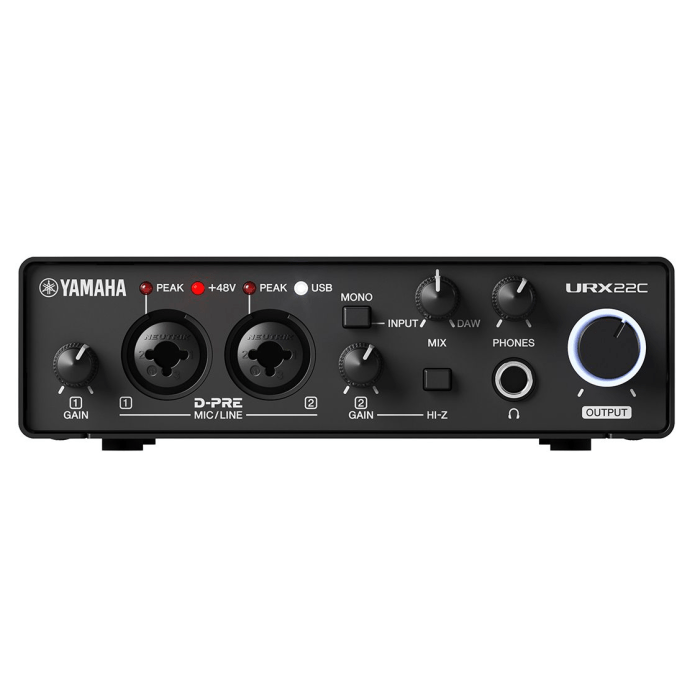

Yamaha URX22C

After hours of rehearsing and fine-tuning, your track is ready to record - but where do you start? The Yamaha URX22C audio interface lets you capture your ideas in studio quality. This 2-in/2-out interface delivers 32-bit/192kHz USB-C audio processing for professional studio sound. Direct monitoring with minimal latency lets you work accurately and comfortably on every recording.

The URX22C is compatible with Windows, macOS and iOS, so you can effortlessly switch between different devices. After recording, you can get straight to work with the included Cubase AI and Steinberg Plus software, finishing your productions in detail. The robust metal casing protects the unit during transport, so your studio is always within reach.

Simple operation. Serious functionality.
Designed for quick and intuitive use, the URX22C offers practical, hassle-free operation. Independent headphone and master volume knobs let you effortlessly set appropriate monitor levels. The MIX button allows you to combine direct input with playback audio - ideal for livestreams or recordings.
The separate MONO button keeps your mix balanced on any playback system, so you can be confident your audience will hear exactly what you mean.

Thanks to the integrated hardware DSP processor, you hear exactly what you want during recording - for example, your vocals with reverb or slight compression - without latency. This is because the effects are processed in real time by the DSP in the interface, not by your PC. So you can relax rehearsing or singing in, with the right sound in your headphones, while simultaneously recording a clean, dry signal.

Everything you need. Wherever you go.
The URX22C comes with powerful tools to take your productions to the next level. Cubase AI offers a streamlined version of Steinberg's well-known DAW for multitrack recording and editing, while Steinberg Plus adds additional sounds, effects and virtual instruments. MixKey makes audio routing and streaming clear, and compatibility with Elgato Stream Deck lets you control your interface at the touch of a button.

Yamaha URX22C features:

• USB Type-C audio/MIDI interface with 32-bit / 192kHz support
• two Mic/Line combo inputs (XLR / 6.3 mm TRS) with Hi-Z switch on input 2 for guitar
• D-PRE microphone preamps with +48V phantom power and mono switch
• two TRS line outputs and one headphone output
• MIDI input and output (5-pin DIN)
• three-channel loopback for flexible streaming and communication
• internal DSP with Basic FX Suite for latency-free monitoring and professional effects
• input mix: 2 mono + 3 stereo loopback + 1 FX
• sockets: 1 mix (stereo) + 1 FX + 1 stereo
• solid metal housing, suitable for mobile use
• comes with Cubase AI, Cubasis LE (iOS), Steinberg Plus and USB cable
• USB 3.0 power supply (optional power supply required with USB 2.0)
• compatible with Windows, macOS and iOS

Yamaha URX22C specifications:

• A/D & D/A conversion: 32-bit / 192 kHz
• frequency response: 20 Hz - 22 kHz (+0.1 / -0.5 dB)
• dynamic range: 102 dB (A-weighted)
• total harmonic distortion (THD+N): < 0.003%
• signal-to-noise ratio: 102 dB
• latency: virtually zero with direct DSP monitoring
• phantom power supply: +48 V, individually switchable
• internal DSP: 32-bit processing with REV-X reverb, channel strip and guitar amp simulator
• MixFX configuration via dspMixFx software or Cubase
• drivers supported: ASIO, Core Audio, WDM
• power supply: via USB 3.0 (5 V DC, max. 900 mA)
• optional power supply for use with USB 2.0
• power consumption: approx. 2.5 W
• housing: all metal with rubber feet
• dimensions (w x h x d): 159 x 47 x 159 mm
• weight: 1.0 kg
