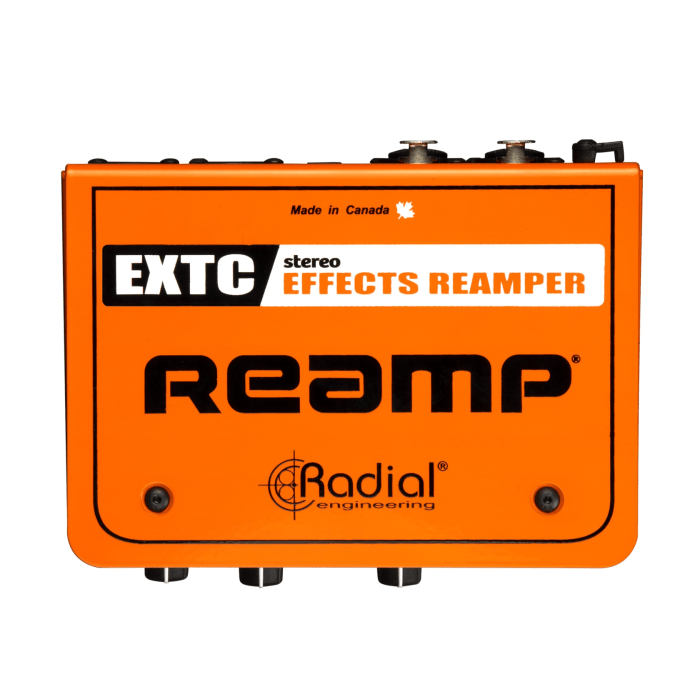

Radial EXTC-Stereo

The Radial Engineering EXTC-Stereo is a stereo interface that allows you to integrate guitar effect pedals with professional audio equipment, such as recording interfaces and mixing consoles. It allows you to use stereo pedals in your productions and discover creative new sound possibilities.

With the EXTC-Stereo, you easily connect stereo effect pedals - such as reverb, delay, chorus or flanger - to line-level inputs and outputs of your audio console or interface. For example, send drum overheads to a multi-tap delay, revive a boring keyboard patch with a flanger, or add character to vocals or strings via your favorite pedals. It's an ideal way to use your effects pedals in a fresh way in your mixes and give your studio recordings unique character.

• Audio circuit type: Proprietary Active Circuit with Class-A buffers

• Number of channels: 2

• Frequency response: 20Hz to 20kHz (-0.5dB/+0.5dB)

• Dynamic range: >+130dBu

• Total harmonic distortion: 0.007% @ 0dBu, 1kHz

• Intermodulation Distortion: 0.002% @ 0dBu, 1kHz

• Common Mode Rejection Ratio: 34dBu @ 60Hz, 42dBu @ 3kHz

• Noise Floor: -105dBu

• Maximum Input: +11dBu

• Input Connectors: 1/4" TRS/XLR Combo Jacks, 1/4" TS Insert Recv

• Output Connectors: 1/4" TRS, XLR, 1/4" TS Insert Send

• Extras: SA series rack mount available

• Construction: 14-gauge Steel Chassis

• Finish: Durable Powder Coat

• Power: 15VDC 400mA
