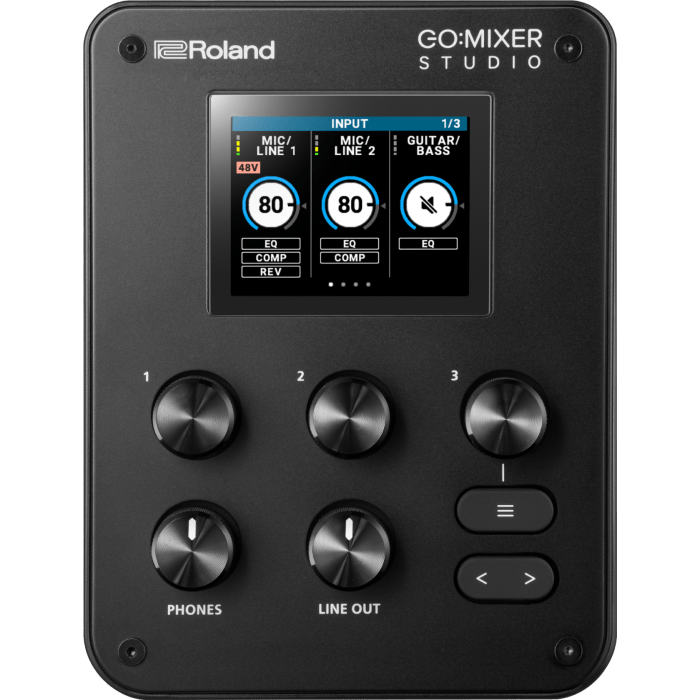

Roland GO:MIXER STUDIO

The Roland GO:MIXER STUDIO is a compact, portable audio interface and mixer for recording and mixing multiple audio sources simultaneously. Whether you produce music with software on your computer, create content with your iPhone or iPad, or want to combine audio with video, this interface is designed to work quickly and conveniently wherever you are.

With a 12-in / 6-out structure and support for recordings up to 24-bit / 192 kHz, the GO:MIXER STUDIO offers high sound quality in a mobile format. Clear controls and a graphic LCD screen keep you in full control of levels, routing and effects.

Inputs and connection options
The GO:MIXER STUDIO is equipped with a wide range of connections, allowing you to use microphones, instruments, line sources and mobile devices simultaneously. Two XLR mic/line inputs feature switchable 48V phantom power for condenser microphones. There is also a dedicated hi-Z instrument input for guitar or bass. For external audio sources, stereo line inputs and an AUX input are available. You can also connect MIDI devices such as synths, drum computers and sequencers directly via the 3.5 mm MIDI inputs and outputs. The USB-C connection provides both audio and MIDI and works class-compliant with computers and mobile devices.

Internal effects and scene memories
The built-in effects make external processors unnecessary. EQ, compressor and reverb are available for each input type, allowing you to shape signals directly while recording or streaming. This makes recordings immediately ready for use or publishing. The mixer has 16 scene memories in which you store complete settings. This is useful when you regularly work with fixed setups, such as podcasts, music recordings or live streams. You can recall a previous configuration at the touch of a button.

[[READMORE]]

Loopback and USB-C integration
The loopback feature lets you play or sing along with audio tracks from your computer, tablet or smartphone via USB-C. This makes the GO:MIXER STUDIO suitable for practicing, recording and live streaming. The USB-C connection supports audio and MIDI simultaneously, allowing the interface to work directly with DAW software and mobile apps, without additional drivers.

> Note that when used via USB at a sampling rate of 192 kHz, a maximum of 8 inputs and 4 outputs are active simultaneously.

Software and app support
For mobile content creation, there is the GO:MIXER Cam App for iOS. This lets you record multitrack audio that syncs directly with video, including mixing capabilities within the app. If you work with a DAW on macOS or Windows, the GO:MIXER Editor provides real-time access to all mixer functions via the computer screen, including routing and level control.

Power supply and mobile use
The GO:MIXER STUDIO can be powered in multiple ways: via USB, an external adapter or a USB power bank. This makes it suitable for mobile use, temporary studio situations and recording on location.

Roland GO:MIXER STUDIO features:

• portable mixer and audio interface
• recording resolution up to 24-bit / 192 kHz
• 12 inputs and 6 outputs
• 2 XLR microphone/line inputs with 48V phantom power supply
• hi-Z instrument input for guitar or bass
• stereo line inputs and outputs via 6.3 mm jack
• AUX-in via 3.5 mm mini-jack
• MIDI in and out via 3.5 mm TRS
• built-in EQ, compressor and reverb
• 16 scene memories for mixer settings
• loopback function via USB-C
• USB-C audio and MIDI, class-compliant
• support for iOS, macOS and Windows
• LCD display
• power via USB, adapter or power bank

Roland GO:MIXER STUDIO specifications

• portable audio mixer / interface
• number of channels: 12 in / 6 out
• AD/DA resolution: 24-bit / 192 kHz
• 2x microphone inputs, XLR
• 2× 6.3 mm jack (L/R) line inputs
• 1× 6.3 mm jack (guitar/bass) instrument inputs:
• 1× 3.5mm TRRS AUX input
• 2× 6.3 mm jack (L/R) main outputs
• 1× 6.3 mm TRS headphone output
• 2× 3.5mm TRS (in/out) MIDI I/O
• 2× USB-C (audio/MIDI and power supply)
• 3-band EQ
• reverb, compressor effects
• 16x scene memory
• 320 × 240 graphic LCD display
• software: GO:MIXER Cam App (iOS), GO:MIXER Editor (macOS/Windows)
• power supply via USB
• dimensions (h × w × d): approx. 6.5 × 11.0 × 15.6 cm
• weight: approx. 440 g
• manufacturer's type number: GOMIXERST
