Arturia MiniFuse OTG (on-the-go)

The Arturia MiniFuse 2 OTG is a compact 2-in/2-out USB-C audio interface designed for music production, podcasts, live streams, mobile recording, and content creation. Thanks to two separate USB-C ports, you can connect the interface simultaneously to a computer and a smartphone, tablet, or second computer. Audio can be sent in both directions between these devices without having to reconnect any cables.

Two devices, one audio mix
The additional OTG port makes the MiniFuse 2 OTG ideal for recording and live streaming with a mobile device. For example, you can send audio from your DAW on a computer to a phone and use it directly for a live stream. Conversely, you can send audio from a mobile synthesizer app, video, or other audio source to your computer to record it in your DAW. The OTG port supports bidirectional audio and operates at 44.1 or 48 kHz. Via the main USB port, the MiniFuse 2 OTG supports sample rates up to 192 kHz. The OTG port transmits data only and does not provide power to the connected mobile device.

Recording with Two Inputs

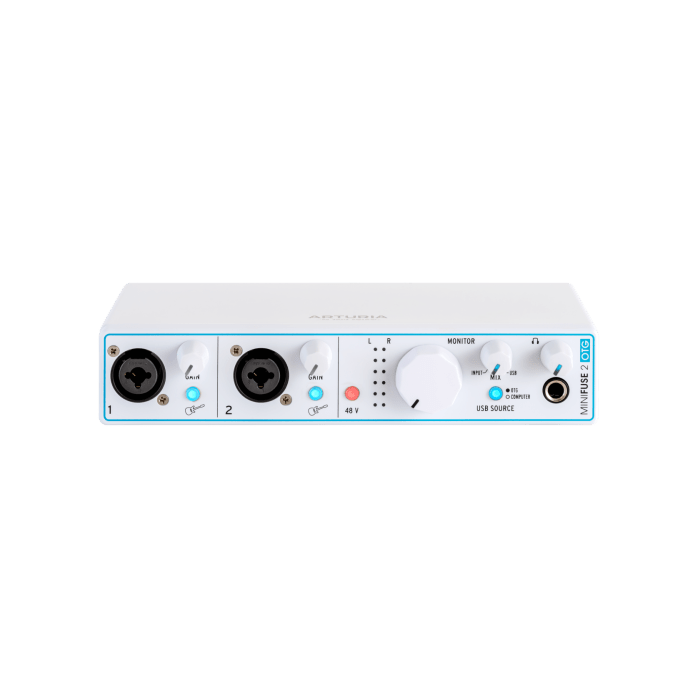

On the front panel, you’ll find two XLR/TRS combo inputs for microphones, instruments, and line sources. Both inputs feature their own gain control and a switch for instrument or line level. 48V phantom power is available for condenser microphones. The illuminated rings around the gain knobs indicate the input level and warn when the signal is overdriven. With a dynamic range of 110 dB, a gain range of 56 dB, and an SIR of -129 dB, the microphone preamps deliver a clear signal with low self-noise.

Direct monitoring with no delay
The Monitor Mix control lets you adjust the balance between the direct input signal and the audio from your computer or mobile device. This allows you to hear yourself without any noticeable delay while recording. The USB Source button lets you choose between your computer, the connected OTG device, or a combination of both sources. The headphone output has its own volume control. The volume of the balanced monitor outputs is controlled separately using the large Monitor knob. Colored L/R level meters display the output level.

[[READMORE]]

Loopback for Streaming and Podcasts
With the built-in loopback function, you can record audio from your computer along with microphones or instruments. This is useful for live streams, podcasts, online classes, gameplay, demonstrations, and video commentary. Use the MiniFuse Control Center to configure routing, loopback channels, direct mono summing, and other interface functions.

USB Hub for Peripherals The USB-A hub on the back is compatible with a MIDI controller or other USB device with a power draw of up to 200 mA. This means you don’t have to use an extra USB port on your computer. The interface itself is powered via USB-C. For longer mobile sessions, an external USB power source can be used.

Compact aluminum housing
The MiniFuse 2 OTG measures 20 x 10 x 4.3 cm and weighs approximately 440 grams. The aluminum housing is designed for use in the studio and on the go. Every MiniFuse undergoes more than 200 reliability tests, and Arturia offers a five-year manufacturer’s warranty upon registration.

Complete Software Package The MiniFuse 2 OTG comes with software for recording, producing, streaming, and audio editing. Ableton Live Lite, Steinberg Cubase LE, and Cubasis LE provide complete recording and production environments. Analog Lab Intro includes 500 synthesizer and keyboard sounds. For mixing and effects, Arturia Rev PLATE-140, Pre 1973, Delay TAPE-201, and Chorus JUN-6 are included. You’ll also receive iZotope VEA for voice editing, one year of Hindenburg PRO, and trial subscriptions to Auto-Tune Unlimited and the Splice Creator Plan.

Arturia MiniFuse 2 OTG features:

• 2-in/2-out USB audio interface
• Audio resolution up to 24-bit/192 kHz via computer
• OTG audio at 44.1 and 48 kHz
• Simultaneous connection to two USB host devices
• Two-way audio between computer and mobile device
• 2 XLR/TRS combo inputs
• Suitable for microphone, instrument, and line signals
• 2 microphone preamps with 56 dB of gain
• 48V phantom power for condenser microphones
• Backlit gain controls with overload indication
• L/R level meters with color indication
• Monitor Mix control for direct monitoring
• USB source selection for computer and OTG
• Loopback function for streaming and recording
• Direct mono summing via MiniFuse Control Center
• Stereo headphone output with dedicated volume control
• 2 balanced TRS monitor outputs
• USB-A hub for devices up to 200 mA
• Class-compliant operation with computers and mobile devices
• Power via USB-C
• Aluminum housing

Included software:

• Arturia MiniFuse Control Center
• Ableton Live Lite
• Arturia Analog Lab Intro
• Arturia Chorus JUN-6
• Arturia Delay TAPE-201
• Arturia Pre 1973
• Arturia Rev PLATE-140
• Auto-Tune Unlimited, 3-month subscription
• Splice Creator Plan, 3-month subscription
• iZotope VEA
• Hindenburg PRO, 1-year subscription
• Steinberg Cubase LE
• Steinberg Cubasis LE

Included: Arturia MiniFuse 2 OTG White, USB-C-to-USB-A cable, and USB-C-to-USB-C cable

Arturia MiniFuse 2 OTG Specifications:

• USB audio interface
• Analog inputs: 2 x XLR/6.35 mm TRS combo
• Analog outputs: 2 x 6.35 mm TRS
• Headphone output: 1 x 6.35 mm TRS
• USB ports: 2 x USB-C
• USB hub: 1 x USB-A, up to 200 mA
• Audio resolution: 24-bit
• Supported computer sample rates: 44.1, 48, 88.2, 96, 176.4, and 192 kHz
• Supported OTG sample rates: 44.1 and 48 kHz
• Input dynamic range: 110 dB
• Gain range: 56 dB
• Phantom power: 48V
• Compatibility: Windows, macOS, iOS, and Android
• Minimum mobile OS versions: iOS 15 and Android 10
• Dimensions: 20 x 10 x 4.3 cm
• Weight: 0.44 kg
• Color: white
• Item number: 810132
