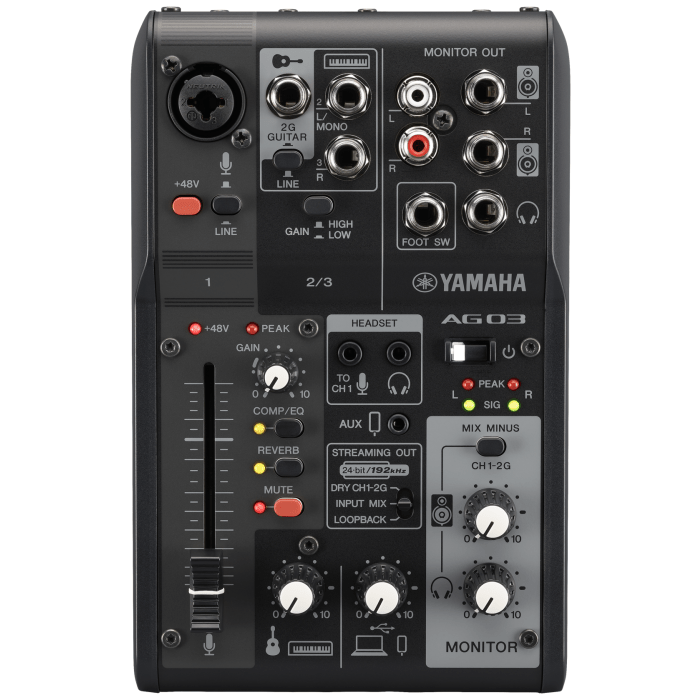

Yamaha AG03MK2B (B-stock)

This item is b-stock as original packaging and accessories are no longer present.

The Yamaha AG03 Mk2 is an updated, 3-channel mixer designed to deliver high-quality audio for (live) streaming, gaming, webcasting and live music. This robust mixer gives you 24-bit/192kHz audio quality, USB connectivity, onboard DSP effects and loopback functionality. The Mk2 introduces a 1/8-inch, 4-pin mini-I/O to enable a variety of streaming options, a mute button and a host of improvements to construction, design, internal circuitry and overall performance - all to ensure optimized, intuitive operation without sacrificing quality. The AG-03 is the most compact version in the series.

Inputs and outputs
The AG03 Mk2 has a sleek design. Inputs and outputs are grouped at the top, keeping controls free of (cable) clutter. A single multi-function jack supports XLR and phone inputs (balanced or unbalanced), while a jack input -- with a dedicated line switch -- lets you switch between guitar and line inputs. A third channel, with dedicated left and right channel inputs, allows you to use the left channel for mono instruments. Furthermore, this mixer supports iOS to integrate apps such as Zoom, Skype, Teams and FaceTime - all from your device.

In control with built-in DSP FX
Getting your levels right is paramount to a good stream, and the AG03 Mk2 has plenty of options for that. For example, you have LEDs for visual feedback, peak control, channel muting and built-in +48 volt phantom power, ideal for using condenser microphones. Reverb, mute and comp/EQ functions include onboard DSP effects in addition to a dedicated 60mm fader for your microphone, in addition to channel control and gain adjustment. The 3-way selector further controls your stream control, with options for dry channel 1-2, input mix, and loopback -- the latter allowing you to simultaneously integrate music or background audio from your laptop or iOS device with your live inputs.

Offline versatility
Thanks to the AG03 Mk2's class compliance connectivity, iOS integration opens up countless opportunities to get even more out of your mixer. This includes compatibility with Cubasis LE, a multi-touch sequencer app and reduced version of Steinberg Cubase. In addition, the AG a DSP Controller app offers sophisticated control of onboard options, with a "1-touch" easy mode and an expert mode. In addition, the AG03 Mk2 comes with the Cubase AI DAW, providing a powerful, smooth path for producing high-quality recordings.

• USB connectivity for easy use for all kinds of streaming needs
• 3-channel mixer allows for numerous microphone and instrument inputs
• 24-bit/192kHz resolution guarantees high-quality audio output
• built-in DSP provides onboard FX and control, including compression, EQ, filtering and reverb
• precise interfacing tools put you in control of what is heard and how, including built-in loopback mode that lets you supplement inputs with audio from your Mac/PC.
• Class compliance mode for iPad connection allows even more control options, including the Cubasis LE and AG DSP Controller app.
• iOS connectivity allows you to use apps such as Zoom, Skype, Teams and FaceTime in your live stream, all from your device
• +48V phantom power option is ideal for condenser microphone use
• 1/8-inch/3.5mm 4-pin mini I/O jack offers more options for recording audio, including sound effects, cues and background music from another device - with a dedicated mix control

Yamaha AG03MK2 specifications:

• Yamaha AG 03 MK2 B live stream mixer, color black
• USB DC power input: 1 - Type-C, 5 V DC, 900 mA
• power supply: 5 V DC, 900 mA
• power consumption: max. 4.5 W
• dimensions (WxDxH): 12.6 x 20.1 x 6.3 cm
• weight: 0.8 kg
• included: USB 2.0 cable (1.5 m), short manual, safety manual and download information.
