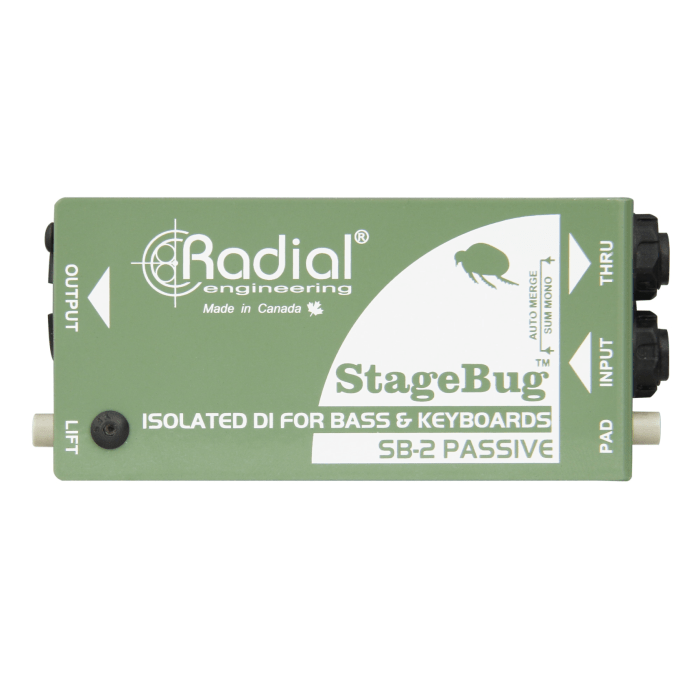

Radial StageBug SB-2

The Radial StageBug SB-2 is a passive DI box that provides a warm, classic sound reproduction of your bass guitar, keyboard or acoustic guitar. This compact DI is equipped with a special Eclipse ET-DB3 transformer that impedance-matches and balances the signal. At the same time, it effectively prevents hum and background noise caused by ground loops.

Thanks to its passive design, the SB-2 can effortlessly handle high input levels, resulting in natural compression. For instruments with active elements, such as digital pianos or basses with active pickups, a convenient -15 dB pad is provided. This keeps your signal always under control, without distortion.

Although the StageBug SB-2 is a mono device, you can input a stereo TRS signal. The internal stereo-to-mono merge function automatically combines both channels into one output. This eliminates the need to set your source device to mono separately.

Radial StageBug SB-2 Passive DI features:

• passive mono DI for bass, keyboards and acoustic guitar
• tames peaks and provides a warmer sound
• ultra-compact size, fits easily into your guitar bag
• plug-and-play design, immediately ready to use
• 6.35 mm input with thru-hook to your amplifier
• -15 dB pad for high output level signals
• stereo-to-mono merge function via TRS input
• transformer isolation prevents hum and ground loops
• XLR output according to AES standard (pin 2 hot)
